Kabeltronik 370103003 Winding Wire 1x0.05mm² Green 100m Aviation/Space

Image Representative of Range

Kabeltronik 370103003 Winding Wire 1x0.05mm² Green 100m Aviation/Space

Kabeltronik
Standard range
Order Code:

12-2104

Brand: Kabeltronik MPN: 370103003 EAN-13: 2050001773524
Qty Unit Price (Ex VAT)
1+ £48.10
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

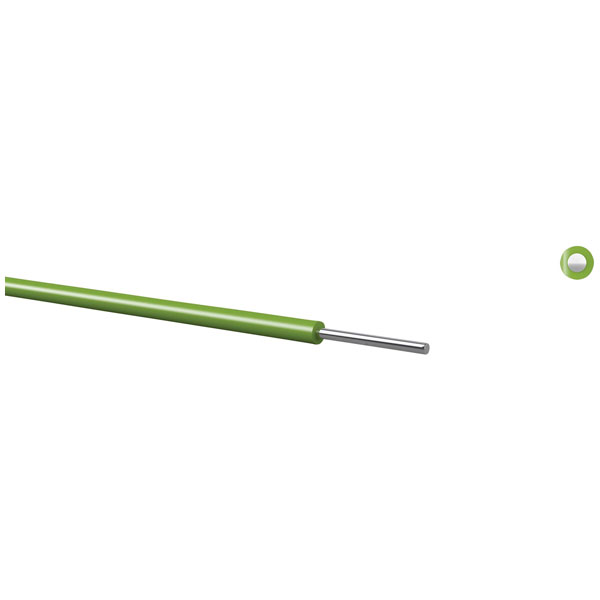

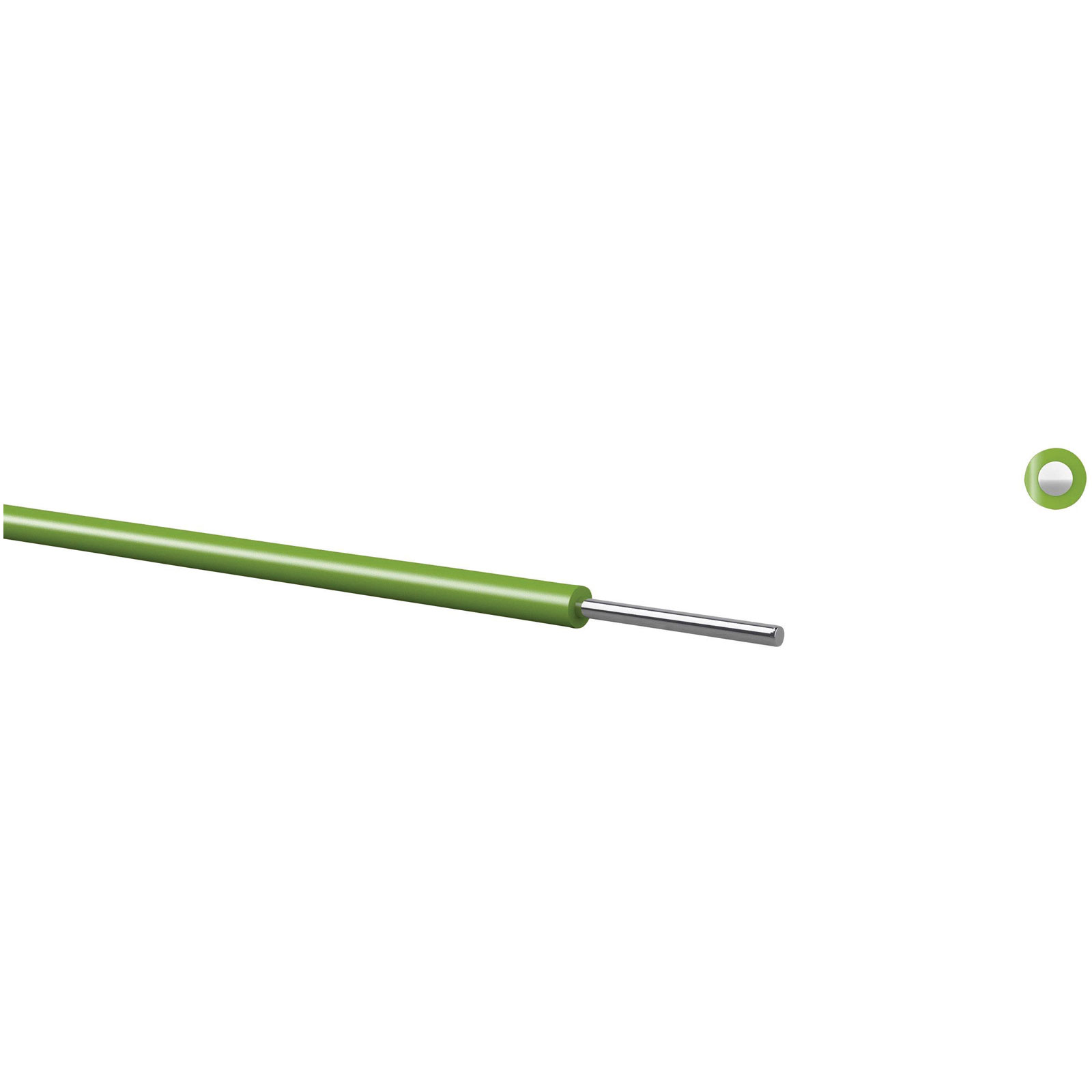

The Kabeltronik 370103003 winding wire is a green braided wiring wire with a cross-section of 1 x 0.05 mm² and is available in a 100 m length. Manufactured by Kabeltronik, it is designed for precise internal wiring and switchboard applications. Its compact size and sturdy construction make it suitable for delicate wiring tasks in electronic and telecommunication setups.
Type Winding wire
AWG max. 30
Cable features Rigid
Core layout Copper
Cross section 1 x 0.05 mm²
Cross section (each core) 0.05mm²
Factory colour Green
Halogen-free No
Insulation material Ethylene tetrafluoroethylene (ETFE)
Manufacturer part # 370103003
Material (details) Conductor: Cu-wire, vz
Max. temperature range (fixed installation) +120°C
Max. temperature range (flexible installation) +120°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -25°C
Misc Attribute 370103003
No. of leads 1
Nominal voltage 300V
Outside Ø 0.58mm
Packaged Yes
Sold per metre No
