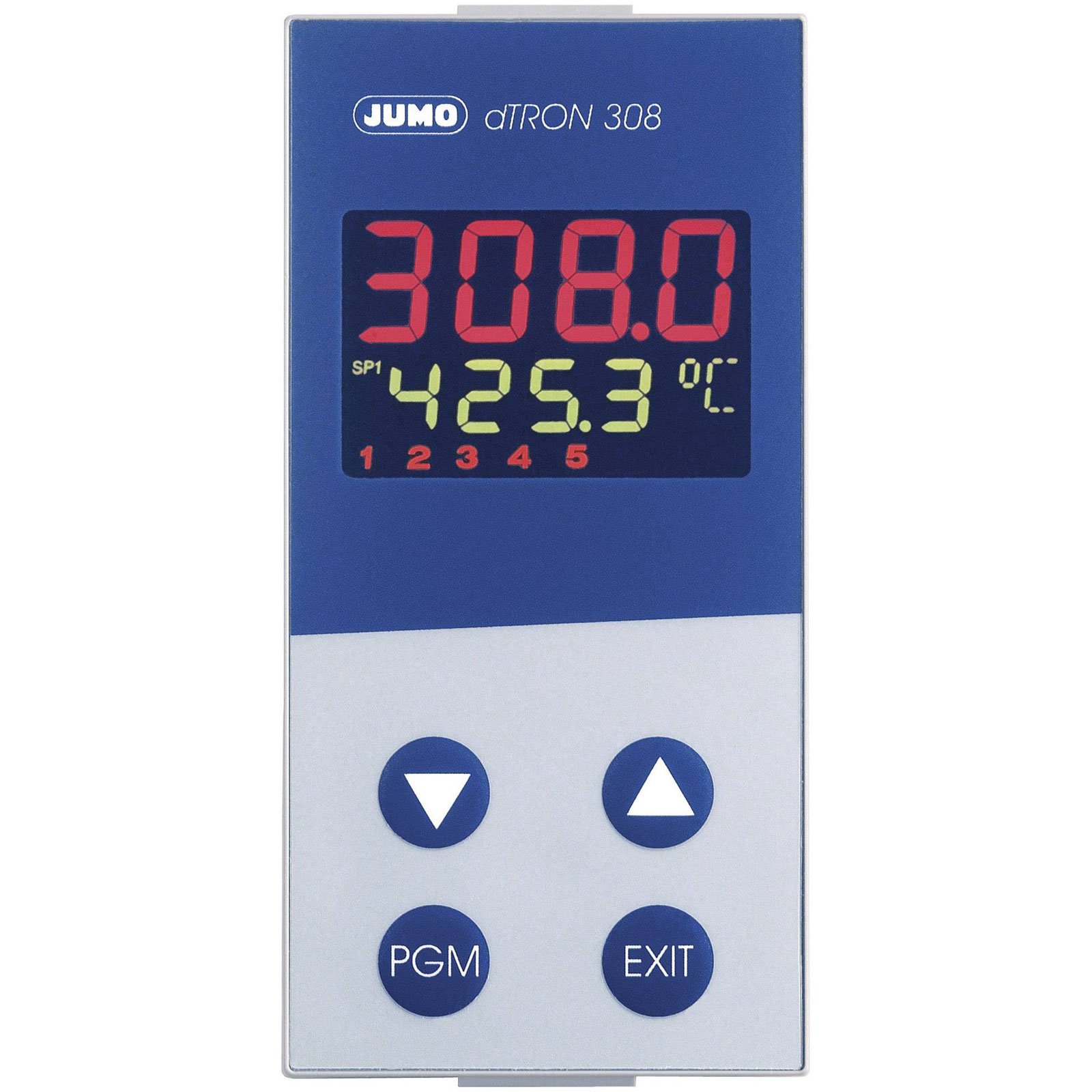

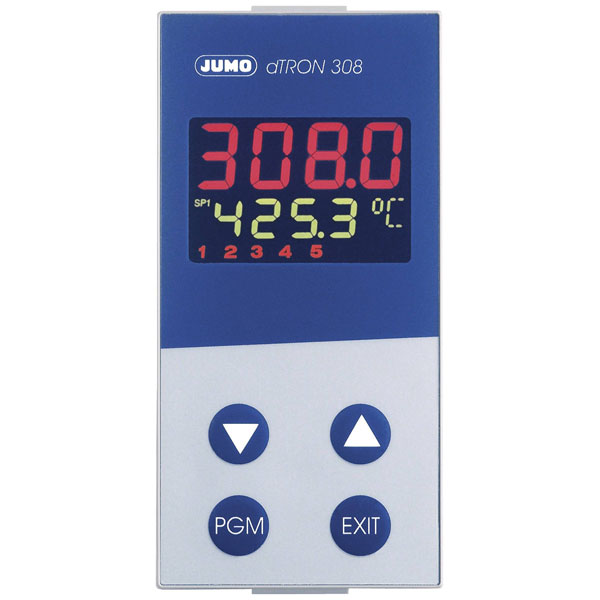

Jumo 703043 dTRON 308 PID Temp Controller -200 to +2400°C Pt100-Pt1000

Jumo's dTRON 308 PID temperature controller features support for multiple sensor types like Pt100, Pt500, and Pt1000, operating within a temperature range from -200 to +2400 °C. It includes a 3 A relay and analogue current with dimensions of 105 x 48 x 96 mm, offering robust temperature regulation for industrial automation and control systems. Ideal for process regulation, it excels in environments requiring precise temperature management, such as manufacturing and laboratory

Type	Temperature controller
Assembly dimensions	45 x 92mm
Dim	(L x W x H) 105 x 48 x 96 mm
Height	96mm
IP rating	IP65 (on front)/IP20 (on back)
Length	105mm
Manufacturer part #	703043
Max. temperature reading	+2400°C
Min. temperature reading	-200°C
Misc Attribute 1	3-point stepper controller
Misc Attribute 2	dTRON 308 (hoch)
Mounting depth	90mm
Mounting Type	Recess-mount
No. of Analogue Inputs	1
No. of relay outputs	2
Operating voltage	110 - 240V AC
Reading range	-200 up to +2400 °C
Recess depth	90mm
Sensor Type	Pt100, Pt500, Pt1000, KTY11-6 · Thermocouple types L, J, U, T, K, E, N, S, R, B, C, D
Thermostat type	PID
Width	48mm
