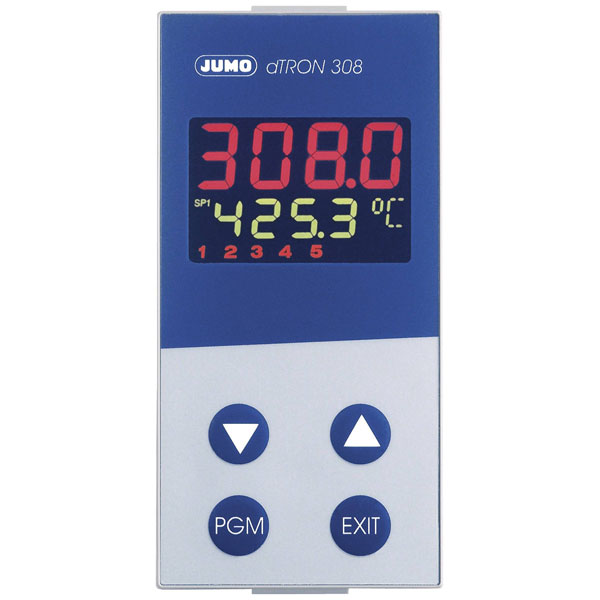

Jumo 703043-1 dTRON 308 PID Temp Controller -200 to +2400°C Pt100

The Jumo dTRON 308 PID temperature controller is designed for precise temperature regulation from -200 to +2400 °C. It supports various sensor inputs like Pt100, Pt500, Pt1000, and offers a 3 A relay with analogue current output. Typical applications include automation in measurement and control systems, catering to industries requiring consistent temperature management.

Type	Pt100, Pt500, Pt1000, KTY11-6 · Thermocouple types L, J, U, T, K, E, N, S, R, B, C, D
Assembly dimensions	48 x 96mm
Dim	(L x W x H) 105 x 45 x 92 mm
Height	92mm
IP Rating	IP65 (on front)/IP20 (on back)
Length	105mm
Min. temperature reading	-200°C
Misc Attribute 1	Constant controller
Misc Attribute 2	dTRON 308 (hoch)
Mounting depth	90mm
Mounting Type	Recess-mount
Number of Analogue Inputs	1
Number of relay outputs	2
Reading range	-200 up to +2400°C
Recess depth	90mm
Temperature Range	+2400°C
Thermostat type	PID
Voltage Range	110 - 240V AC
Width	45mm
