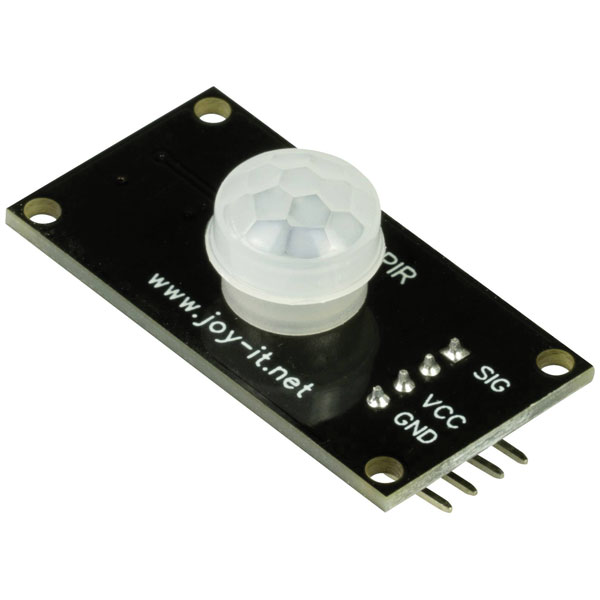

Joy-It Sbc-Pir Motion Detector

The sensor on this module is a pyroelectric infrared sensor, which detects a movement in the detection area of the Fresnel lens and then outputs a "HIGH" signal at the sensor output pin "SIG" for 3 seconds. Then the signal returns to the "LOW" state. The soldered potentiometer is used for infinitely variable range adjustment. With the help of this module and a microcontroller such as Raspberry Pi or Arduino, it can be used for security systems or automation, among other things.

Type	Sensor Kit
Compatible With	Arduino
Height	40mm
Interfaces	Pin header
Internal ports	Pin header
Length	19mm
Max. operating voltage	5V
Min. operating voltage	3V
Tool type	Development kit
Weight	15g
Width	21mm
