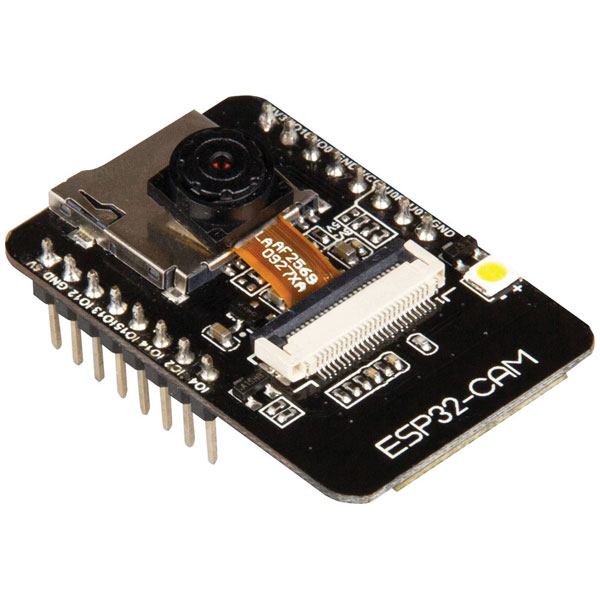

Joy-it SBC-ESP32-CAM Camera Module with WiFi Bluetooth and MicroSD

The Joy-it SBC-ESP32-Cam is a compact, low-power camera module designed for embedded and IoT applications. It is built around the ESP32 microcontroller, which provides integrated Wi-Fi and Bluetooth connectivity, and supports multiple communication interfaces including SPI, I²C, UART, and PWM for flexible system integration.

Equipped with a 2-megapixel camera, the module includes an onboard LED flash for low-light conditions and features a microSD card slot supporting up to 4GB of storage, enabling direct image capture and local storage.

Its small form factor and versatile interface options make it well-suited for use cases such as video monitoring, QR code recognition, and other edge-processing tasks.

• Camera: 2MP OV2640
• Photo formats: JPEG, BMP, Grayscale
• Processor: Dual Core-ESP32 160 MHz
• Interfaces: UART, SPI, I2C, PWM, Wi-Fi, BT-wireless connection
• SD-Card slot: Up to 4 GB
• SPI Flash: 32 Mbit
• RAM: 52KB SRAM + 4MB PSRAM
• Supply voltage: 5 V
• Operating temperature: -20°C ~ 85°C
• UART standard Baudrate: 115200 bps
• Power consumption: 6mA in deep sleep; 180 mA without flash; 310 mA with flash at maximum brightness
• Security: WPA, WPA2, WPA2-Enterprise, WPS
• Dimensions: 27 x 40,5 x 4,5 mm
• Weight: 8g
