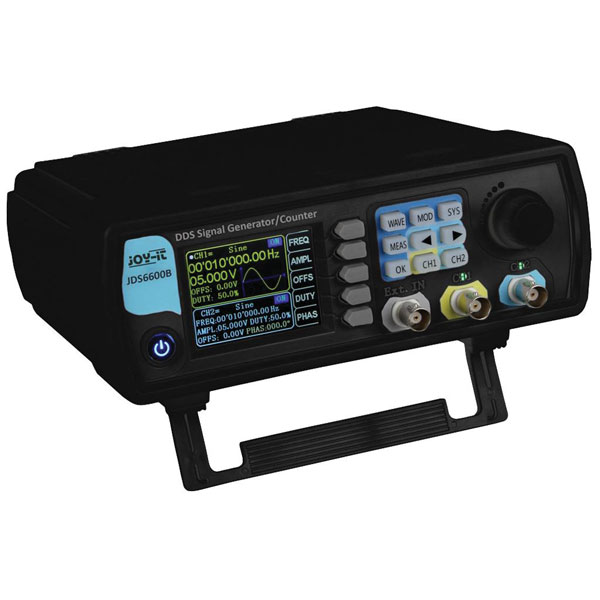

Joy-it 2 channel signal generator with 2.4 inch TFT display

The JDS-6600 is a 2 channel signal generator, which generates signals from up to 60 MHz. It can be adjusted to different shapes of the curve, such as sine, rectangle, triangle, pulse, Half wave and much more, can be used in all fields of measurement technology. A 1-channel frequency counter is also integrated. With a frequency accuracy of ±20ppm and a stability of ±1ppm/3h, it offers excellent signal quality and flexibility. The 2.4" (6.1cm) large TFT color display provides for optimal user-friendliness, resulting in a variety of applications.

Type	Signal Generator
Frequency Range	0 Hz - 60 MHz
Number of Channels	2-channel
Calibrated to	Manufacturer's standards (no certificate)
Dim	(W x H) 194 mm x 69 mm
Display	LCD
Distortion factor (sine)	0,9%
Frequency range (sine)	60Hz
Height	69mm
Max. frequency	60MHz
Min. frequency	0Hz
Output	150mA
Width	194mm
