Intertec ITS-LS-1614-Z-24VDC Solenoid 24V DC 2W Light Frame Damping Ring

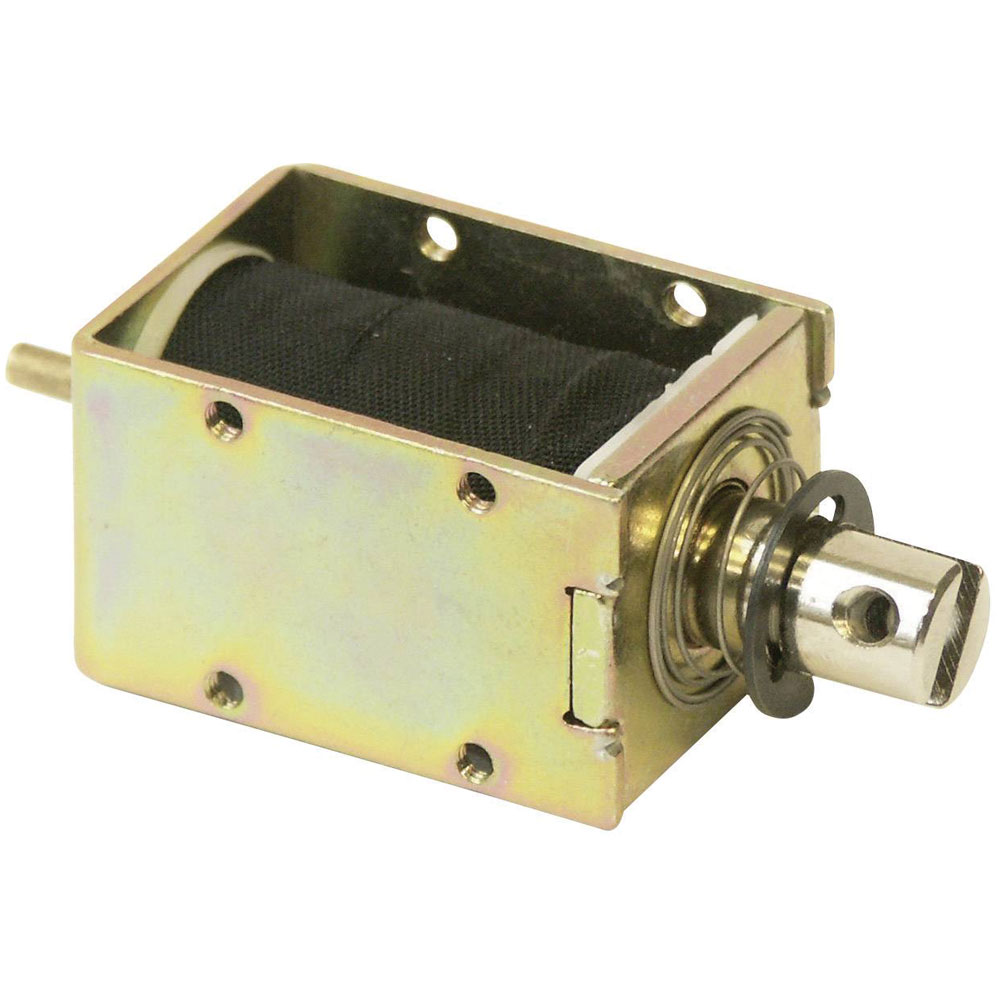

Image Representative of Range

Intertec ITS-LS-1614-Z-24VDC Solenoid 24V DC 2W Light Frame Damping Ring

Intertec
Standard range
Order Code:

09-5076

Brand: Intertec MPN: ITS-LS-1614-Z-24VDC EAN-13: 4064161266244
Qty Unit Price (Ex VAT)
1+ £7.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
59 in stock, despatched in 4 working days

The Intertec ITS-LS-1614-Z-24VDC solenoid operates at 24 V DC and 2 watts, featuring an attraction range of 0.2 N/mm to 6.6 N/mm. It is a versatile component suitable for applications requiring precise magnetic control. Typically used in automation systems, this solenoid acts as a reliable actuator in various motorised devices.
Type Solenoid
Cable length 0.19m
Connection Open end cable
Dim (L x W x H) 30.2 x 14 x 16 mm
Fitting method M3
Height 16mm
Initial force 0.2 N/mm
Length 30.2mm
Misc Attribute 1 ITS-LS-1614-Z-24VDC
Misc Attribute 2 attracting
Nominal lift 10mm
Nominal voltage 24V DC
Peak force 6.6 N/mm
Power 2W
RoHS-compliant Yes
Temperature limit 130°C
Thread Size M3
Travel (max.) 10mm
Travel (min.) 5mm
Weight 33g
Width 14mm
