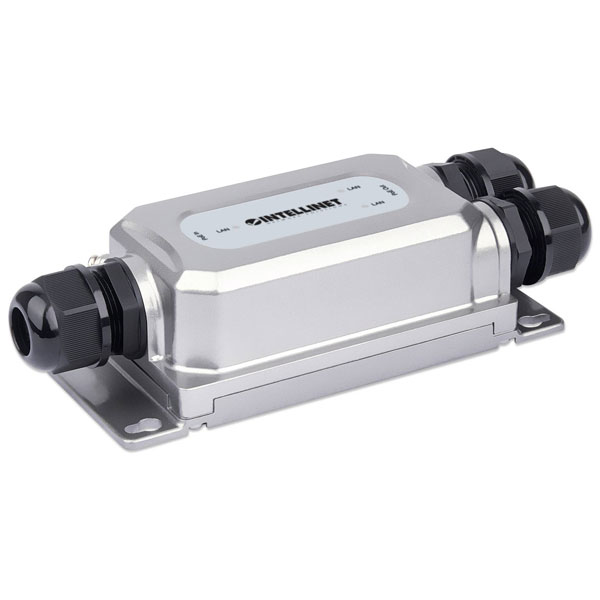

Intellinet 561648 Intellinet 2-Port Outdoor Gigabit PoE Extender IEEE 802.3bt

Intellinet 561648, also known as 3163220, is that serves as a 2-Port Outdoor Gigabit PoE Extender, adhering to the IEEE 802.3bt standard. This device enables the extension of Power over Ethernet (PoE) connections, effectively doubling the distance over which both data and electrical power can be delivered from a PoE network switch to compatible devices. Engineered for outdoor use, it boasts weather-resistant housing designed to withstand harsh environmental conditions, ensuring reliable performance in various applications such as surveillance systems, wireless access points, and outdoor lighting. Its compliance with the IEEE 802.3bt standard guarantees high power levels suitable for demanding devices, making it an essential component in expanding and maintaining robust, high-efficiency network infrastructures. This extender facilitates seamless and uninterrupted operation in environments where direct power sources are impractical or unavailable, thus playing a crucial role in complex network deployments.

Type	PoE extender
Cable types supported	Cat5e
Cabling technology	10/100/1000Base-T(X)
Certification	FCC Class A, CE, RoHS
Compliance certificates	RoHS
Depth	150mm
Ethernet LAN (RJ-45) ports	3
Harmonized System (HS) code	85176990
Height	38mm
International Protection (IP) code	IP67
LAN Data Transfer Rate	10 / 100 / 1000 MBit/s
Length	115mm
MAC address table	2048 entries
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 60 °C
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	2
Product colour	Grey
Product Type	PoE extender
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 80 °C
Weight	0.692
Width	73mm
