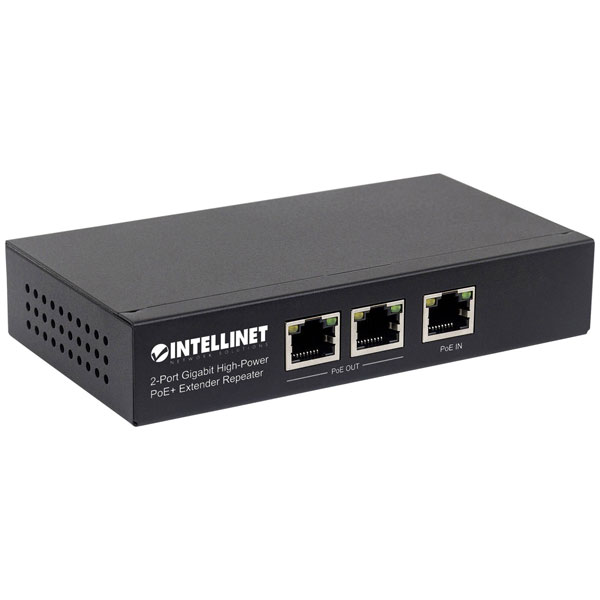

Intellinet 561266 PoE extender 1 GBit/s IEEE 802.3af and 802.3at 25.5 W

Intellinet 561266, also known as 2189533, is a PoE extender designed to enhance the functionality of network systems by amplifying Ethernet signals to extend their range. Compliant with IEEE 802.3af and 802.3at standards, it supports data transfer rates of up to 1 Gbit/s and delivers power up to 25.5 W, facilitating uninterrupted power and data transmission over longer distances. This feature makes it particularly useful in network installations where direct power sources are inaccessible, such as in surveillance systems, wireless access points, and remote telecommunication devices. Its robust design ensures reliable performance in diverse engineering environments, optimising the operational reach of Ethernet networks without additional cabling infrastructure.

Type	PoE extender
10G support	No
Basic switching RJ-45 Ethernet ports quantity	3
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cable types supported	Cat5, Cat5e
Certification	FCC Class A, CE
Colour	Multicolour
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Depth	77mm
Harmonized System (HS) code	85176990
Height	28mm
Housing Material	Metal
Jumbo frames support	Yes
LAN Data Transfer Rate	1 GBit/s
LED indicators	Yes
Length	77mm
MAC address table	2048 entries
Manual	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-10 - 45 °C
Packet buffer memory	0.256 MB
Power consumption (typical)	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	25 W
Product colour	Black
Product Type	PoE extender
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Switch type	Unmanaged
Switching Capacity	6 Gbit/s
Weight	0.235
Width	140mm
