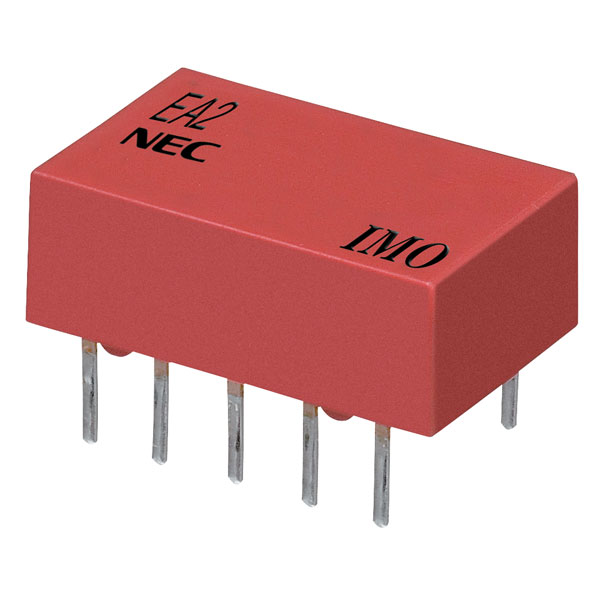

IMO EA2-5NU 5V DPCO Signal Relay EA2

IMO
Order Code:

60-1956

Brand: IMO MPN: EA2-5NU

Discontinued


A DPCO signal relay that features a low profile DIL package that is fully sealed for immersion cleaning.


  • DIL Package
  • High sensitivity coil
  • Ultra low profile, minimal board footprint
  • Fully sealed for immersion cleaning
  • Low magnetic interference
  • FCC Part 68 compliant
  • UL recognised, CSA Certified
Coil Resistance 178Ω
Contact Configuration DPCO
Height 5.4mm
Length 14mm
Mounting Type DIL
Operating Temperature -40 to +85°C
Switching Power 62.5VA
Switching Voltage Max (AC) 250V
Switching Voltage Max (DC) 220V
Width 9mm
Coil Voltage (DC) 5V
Switching Current Max 1A
