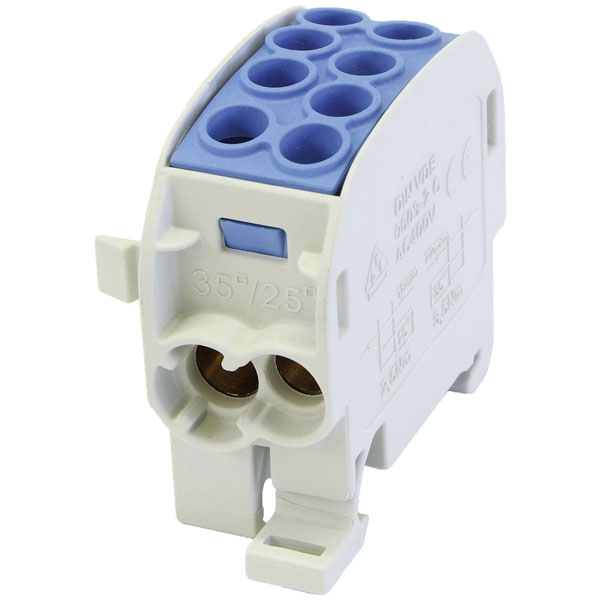

HoraeTec 080210-1-3 Main Tap Terminal Brass Light Blue 125A 690V

The HoraeTec 080210-1-3 Main tap terminal is made from brass and features a grey-white PA finish in RAL 7035. It has a light blue 1-pin design, supports 125 A and 690 V, and is intended for use with N-type conductors. This product is typically used in electrical distribution systems for secure and efficient power connections.

Type	Main tap terminal
No. of Ways	1
Termination	Push-in Cage clamp
Width	29.2mm
Conductor type	N
Current Rating	125A
Depth	55.7mm
Dim	(W x H x D) 29.2 x 49.4 x 55.7 mm
Height	49.4mm
Misc Attribute 1	Main cable branch terminal 35 mm²-1-pin
Misc Attribute 2	Type C-moveable finger-safe, modular
Nominal Voltage	690V
