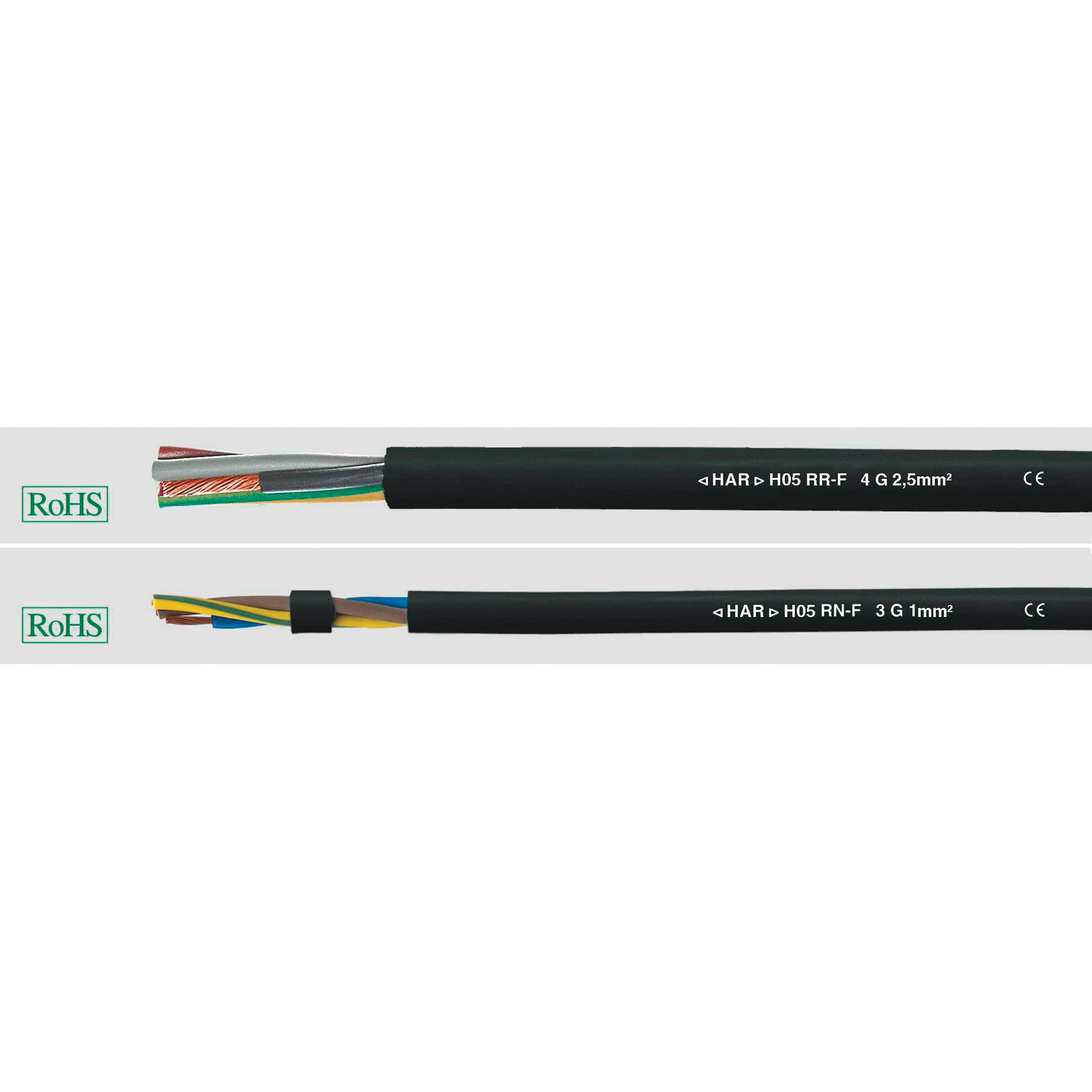

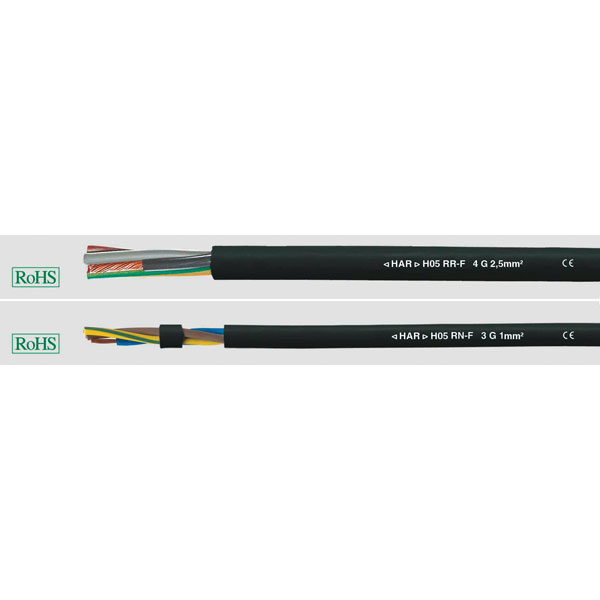

The Helukabel 35003 is a rubber flexible cable, model H05RR-F, featuring a 2 x 1.50 mm² cross-section, and is available in black. Ideal for situations requiring flexible yet robust electrical connections, this cable is commonly used in domestic appliances and light industrial applications. Its durable rubber insulation provides excellent protection against wear and tear, ensuring reliable performance.
| Insulation material |
Rubber |
| Bend radius (no. of ODs for fixed installation) |
7.5 |
| Bend radius (no. of ODs for flexible installation) |
7.5 |
| Cable type |
H05RR-F |
| Core layout |
Cu-blank, according to DIN VDE 0295 KL.5, fine, BS 6360 cl. 5, IEC 60228 25 |
| Cross section |
2 x 1.50 mm² |
| Cross section (each core) |
1.50mm² |
| Factory colour |
Black |
| Halogen-free |
No |
| Manufacturer part # |
35003 |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
60°C |
| Min. temperature range (fixed installation) |
-30°C |
| Misc Attribute |
H05RR-F |
| No. of leads |
2 |
| Nominal voltage |
500V |
| Nominal voltage U0 |
300V |
| Outside Ø |
9.8mm |
| Packaged |
No |
| Shielded |
No |
| Sold per metre |
Yes |
| Test voltage |
2000V |
| Type |
Rubber flexible cable |
| Wire ID code |
Wire identification according to DIN VDE 0293-308
- Up to 5 wires colored
- From 6 wires black with consecutive white digit Imprint |
