Helukabel 24002 HELUTHERM® Cable 2x0.50mm² 100m black high-temp

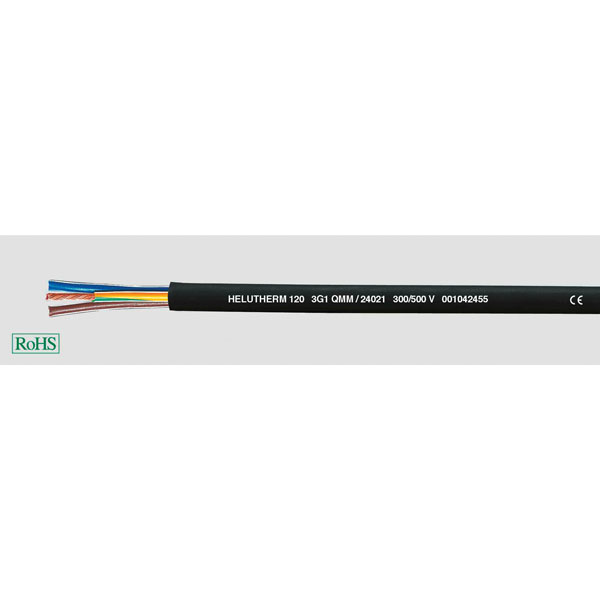

Image Representative of Range

Helukabel 24002 HELUTHERM® Cable 2x0.50mm² 100m black high-temp

HELUKABEL
Order Code:

04-2443

Brand: HELUKABEL MPN: 24002 EAN-13: 2050005624440
Qty Unit Price (Ex VAT)
1+ £75.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 available to back orderBack-order availability date - 25/12/2025

The Helukabel HELUTHERM 120 is a high-temperature, heat-resistant cable designed for demanding environments. With a cross-section of 2 x 0.50 mm², this black cable is supplied in a 100 m length. It is ideal for use in areas where high temperatures are a concern, such as in industrial settings and manufacturing processes.
Colour Black
Type HELUTHERM 120
Bend radius (no. of ODs for fixed installation) 4
Bend radius (no. of ODs for flexible installation) 7.5
Cable Diameter 4.80mm
Conductor Cross-section 0.50mm²
Core layout Cu-blank, after
DIN VDE 0295 Class 5, fine, BS 6360 Cl.5, IEC 60228 Class 5
Halogen-free No
Max. temperature range (fixed installation) +105°C
Max. temperature range (flexible installation) +105°C
Min. temperature range (fixed installation) -30°C
Min. temperature range (flexible installation) -5°C
Nominal Voltage 300V
Number of leads 2
Packaged Yes
Sold by Metre No
Standards DIN VDE 0293/ 308
- Up to 5 wires colored
- From 6 wires black with consecutive white digit Imprint
Test voltage 2000V
