Helukabel 22061 H07BQ-F control lead 5 G 1.50 mm² orange 50 m

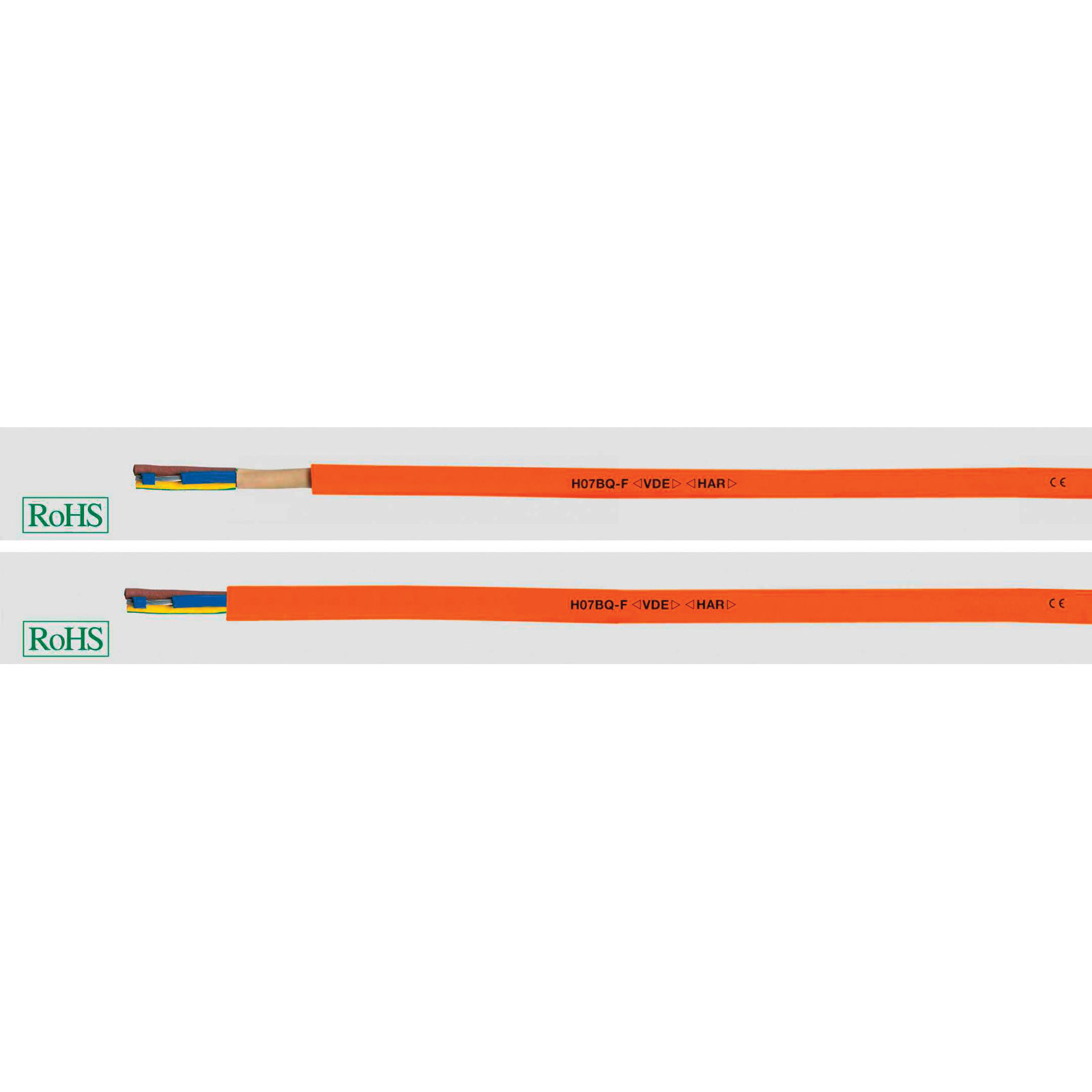

Image Representative of Range

Helukabel 22061 H07BQ-F control lead 5 G 1.50 mm² orange 50 m

HELUKABEL
Standard range
Order Code:

04-2436

Brand: HELUKABEL MPN: 22061
Qty Unit Price (Ex VAT)
1+ £135.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Helukabel H07BQ-F control lead is a finely stranded control cable with a cross-section of 5 G 1.50 mm², available in a vibrant orange colour. It is known for its durability and flexibility, making it ideal for industrial environments. Typical applications include machinery and equipment control systems where reliable transmission of electrical signals is required.
Type Control lead
Bend radius (no. of ODs for fixed installation) 3
Bend radius (no. of ODs for flexible installation) 5
Cable type H07BQ-F
Certification marks DIN VDE 0285-525 -2-21
Core layout Cu-blank, according to DIN VDE 0295 Class 5, fine, BS 6360 Cl.5, IEC 60228 Class 5
Cross section 5 G 1.50 mm²
Cross section (each core) 1.50mm²
Factory colour Orange
Halogen-free No
Insulation material Rubber
Manufacturer part # 22061
Max. temperature range (fixed installation) +90°C
Max. temperature range (flexible installation) -40°C
Min. temperature range (fixed installation) -50°C
Min. temperature range (flexible installation) +80°C
Misc Attribute H07 BQ-F
No. of leads 5 G
Nominal voltage 750V
Nominal voltage U0 450V
Outside Ø 11mm
Packaged Yes
Sold per metre No
Test voltage 2500V
Wire ID code According to DIN VDE 0293-308
