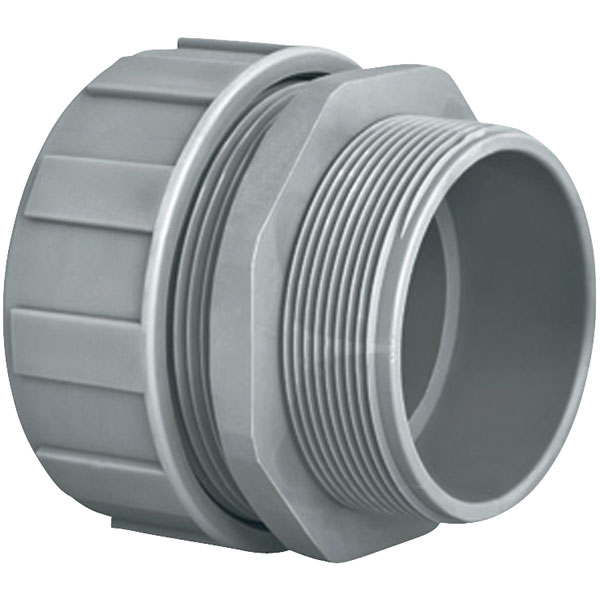

HellermannTyton Straight Connector for Spiral Reinforced PVC Conduit PSR-S

HellermannTyton Brand: HellermannTyton

A range of HellermannTyton Connectors for Spiral Reinforced PVC Conduits from the PSR-S Series. The straight connectors have been manufactured from Polyamide 6.6 (PA66) with a flammability approval of UL94 V2.

The connectors have an external thread, and come with IP65 approval for PSR Conduits and IP67 with PSRSC Conduits. They are highly resistant to solvents and oils and free of halogen, sulphur and phosphorus.

  • Straight PA66 fitting, external thread
  • IP65 with PSR Conduits
  • IP67 with PSRSC Conduits
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Metric threads supplied with locknuts
  • Fits both PSR and PSRSC conduits
  • Available in diameters of 10, 12.6, 16, 21, 26.5 and 35.4mm options
  • Supplied in grey
Description Image Product Buy Pricing (Ex VAT) Internal Diameter Bore Size Diameter Type Colour Length Material Maximum Temperature Min. temperature
HellermannTyton 166-40701 PSR12-S-M16 PSR-S Straight fitting 10mm
HellermannTyton 166-40701 PSR12-S-M16 PSR-S Straight fitting 10mm
Standard range
Order code: 49-6629
MPN: 166-40701

Despatched within 4 working days - 7 in stock
2+ £2.59
Price per unit Ex VAT 		12mm STRONG 9.0mm/STRONG 10mm Conduit gland Grey n/a Polyvinyl chloride (PVC) +135°C -50°C
HellermannTyton 166-40702 PSR16-S-M16 PSR-S Straight fitting 12.6mm
HellermannTyton 166-40702 PSR16-S-M16 PSR-S Straight fitting 12.6mm
Standard range
Order code: 49-6630
MPN: 166-40702

Despatched within 4 working days - 9 in stock
2+ £3.33
Price per unit Ex VAT 		16mm STRONG 10.5mm/STRONG 12.6mm Conduit gland Grey n/a Polyvinyl chloride (PVC) +135°C -50°C
HellermannTyton 166-40703 PSR16-S-M20 PSR-S Straight fitting 12.6mm
HellermannTyton 166-40703 PSR16-S-M20 PSR-S Straight fitting 12.6mm
Standard range
Order code: 49-6631
MPN: 166-40703

Despatched within 4 working days - 8 in stock
1+ £3.67
Price per unit Ex VAT 		16mm 12.6mm Conduit gland Grey n/a Polyvinyl chloride (PVC) +135°C -50°C
HellermannTyton 166-40704 PSR20-S-M20 PSR-S Straight fitting 16mm
HellermannTyton 166-40704 PSR20-S-M20 PSR-S Straight fitting 16mm
Standard range
Order code: 49-6632
MPN: 166-40704

Despatched within 4 working days - 21 in stock
1+ £4.00
Price per unit Ex VAT 		16mm STRONG 14.5mm/STRONG 16mm Conduit gland Grey n/a Polyvinyl chloride (PVC) +135°C -50°C
HellermannTyton 166-40705 PSR25-S-M25 PSR-S Straight fitting 21mm
HellermannTyton 166-40705 PSR25-S-M25 PSR-S Straight fitting 21mm
Standard range
Order code: 49-6633
MPN: 166-40705

Despatched within 4 working days - 20 in stock
1+ £4.66
Price per unit Ex VAT 		21mm STRONG 19.0mm/STRONG 21mm Conduit gland Grey n/a Polyvinyl chloride (PVC) +135°C -50°C
HellermannTyton 166-40706 PSR32-S-M32 PSR-S Straight fitting 26.5mm
HellermannTyton 166-40706 PSR32-S-M32 PSR-S Straight fitting 26.5mm
Extended range
Order code: 49-6634
MPN: 166-40706

Available to back orderBack order, lead time 4 weeks
1+ £5.64
Price per unit Ex VAT 		32mm STRONG 24.5mm/STRONG 26.5mm Conduit gland Grey n/a Polyvinyl chloride (PVC) +135°C -50°C
Mftrs. Part no.TypeNominal ØThread MetricBore sizeOutside ØLengthA/F BodyOrder code
166-40701PSR12-S-M1612mmM169mm24mm38mm23mm49-6629
166-40702PSR16-S-M1616mmM1610.5mm28mm40mm25mm49-6630
166-40703PSR16-S-M2016mmM2010.528mm41mm25mm14mm49-6631
166-40704PSR20-S-M2020mmM2014.5mm33mm43mm30mm49-6632
166-40705PSR25-S-M2525mmM2519mm42mm45mm37mm49-6633
166-40706PSR32-S-M3232mmM3224.5mm48mm48mm45mm49-6634
