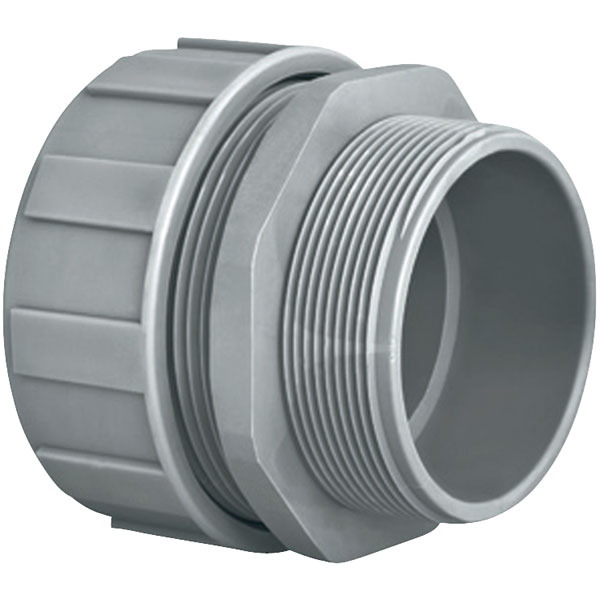

HellermannTyton 166-40706 PSR32-S-M32 PSR-S Straight fitting 26.5mm

The HellermannTyton 166-40706 PSR32 is a Connector for Spiral Reinforced PVC Conduit from the PSR-S Series. The straight M36 connector has been manufactured from Polyamide 6.6 (PA66) with a flammability approval of UL94 V2.

The connector has an external thread, and comes with IP65 approval for PSR Conduit and IP67 with PSRSC Conduit. It is highly resistant to solvents and oils and free of halogen, sulphur and phosphorus.

• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Fits both PSR and PSRSC conduits
• Halogen-free: Yes
• Operating Temperature: -50°C to +135°C
• Sold: singly
• Nominal diameter: 32mm
• Bore size: 24.5mm
• Type: PSR-S Series
• Supplied in Grey
• Manufacturer's part: 166-40706 PSR32-S-M32
