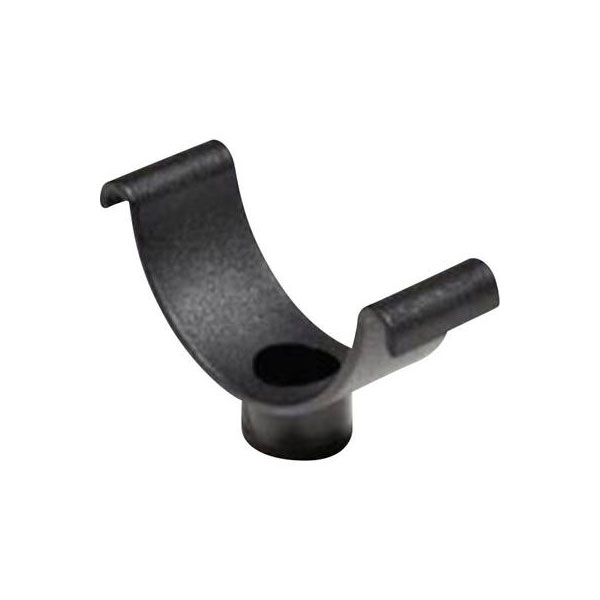

HellermannTyton 201-10010 C1-N66-BK-C1 Mounting Cradle Clip Black

The HellermannTyton 201-10010 C1 is a Clip Base, one part of a pair required to make a Cradle Clip. The Cradle Clip is a simple and versatile method of bundling cables. The mounting cradle clip consists of two parts, the 'clip base' for mounting onto a panel, and the 'elasticated loop' (retaining ring). The elasticated loop is simply stretched over the clip offering a simple and quick method of containing cables.

The cradle clips are suitable for pre-assembly, prototyping or applications requiring the addition or removal of cables.

Please Note: A clip base (C) and a elasticated loop (R) must both be purchased to make one cable clip.

• Simple and easy to use
• Bundle diameter: 6.3mm
• Material: Cradle clamp Polyamide 6.6 (PA66)
• Product Specifications: Bore hole diameter 4.8mm
• Flame retardant in accordance with UL94 V2
• Temperature range: -40ºC to 85ºC, temporarily up to +105ºC (500 hrs)
• Dimensions: 25(L1) x 15.5(B1) x 12.7(B2) x 14(H) x 6.3(R)mm
• Supplied in black
• Type: C1
• Manufacturer's part: HellermannTyton 201-10010
