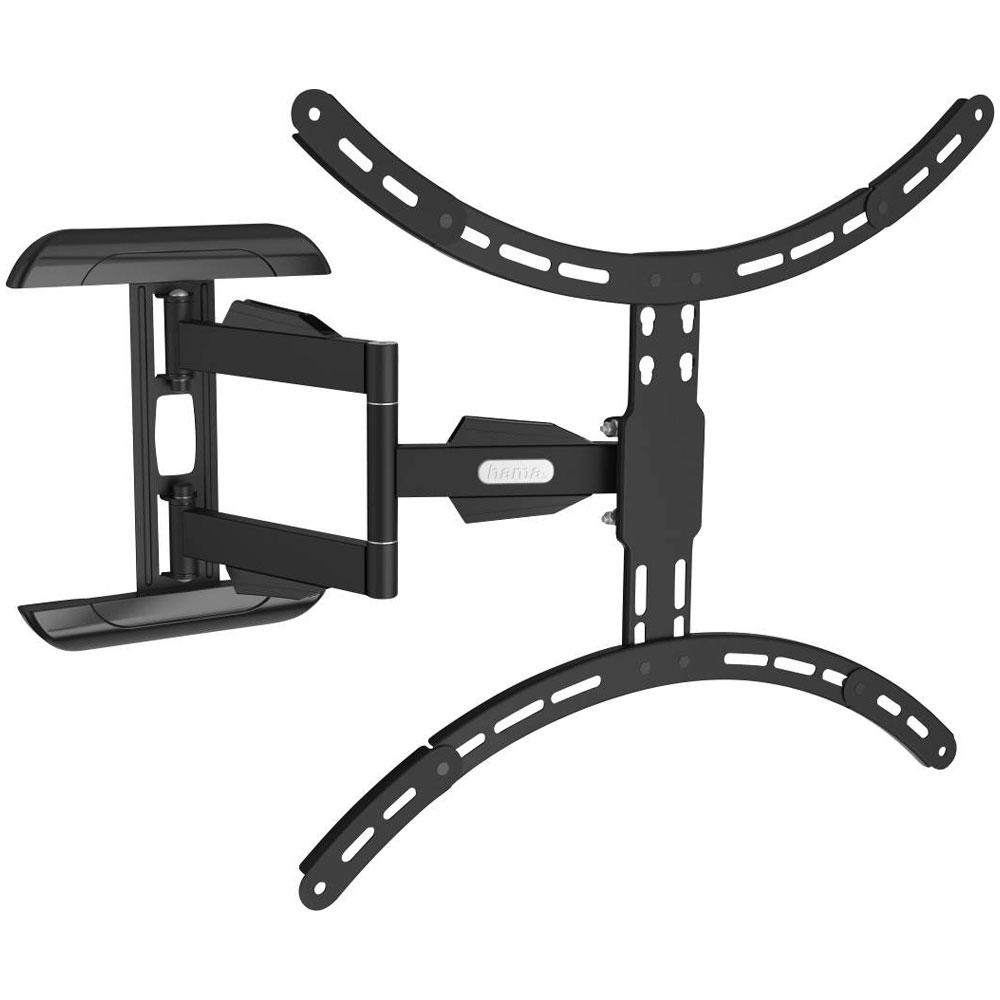

Hama 220836 TV wall mount for 37"-75" screens swivel/tilt function

Hama 00220836, also known as product code 3304420, is a addition to the range of TV wall mounts designed for screens measuring between 37 and 75 inches. This robust mount incorporates a swivel and tilt function, providing flexibility in viewing angles that is critical in various engineering applications such as in control rooms, conference centres, and residential media setups. Made from durable materials, the wall mount supports secure installations and can accommodate a wide range of flat-panel televisions within the specified size range, ensuring reliable stability and ease of adjustment. Its engineering design addresses both ergonomic considerations and space optimisation, making it a functional solution in both commercial and domestic environments where space saving and versatility are necessary.

Type	TV wall mount
Angle of rotation	3°
Colour	Black
Distance to the wall (max)	47.8 cm
Distance to the wall (min)	5.4 cm
Distance to wall (max.)	478mm
Distance to wall (min.)	54mm
Easy to adjust	Yes
Height	582mm
Holder Type	Swivelling/tiltable
Housing Material	Steel
Max. load Capacity	45kg
Maximum screen size	190.5 cm (75)
Maximum VESA mount	600 x 500 mm
Maximum weight capacity	45 kg
Minimum screen size	94 cm (37)
Minimum VESA mount	200 x 200 mm
Mounting Type	Wall
Number of displays supported	1
Panel mounting interface	200 x 200,200 x 300,300 x 200,300 x 300,300 x 100,400 x 200,400 x 400,400 x 300,600 x 400,600 x 500
Pneumatic technology	No
Product colour	Black
Quantity per pack	1 pair(s)
Rotating	Yes
Rotation	3°
Suitable For	94,0 cm (37") - 190,5 cm (75")
Swivel angle	180°
Swivel Range (left)	180°
Swivel Range (right)	180°
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	2 - 12°
Tilt Range (bottom)	12°
Tilt Range (top)	2°
Width	634mm
