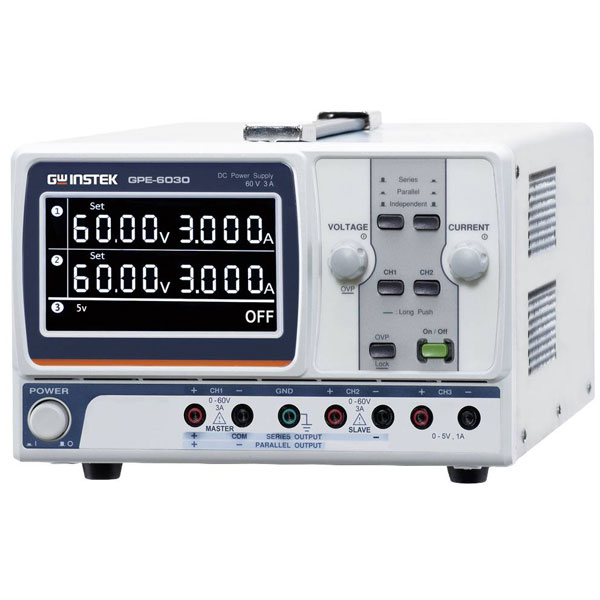

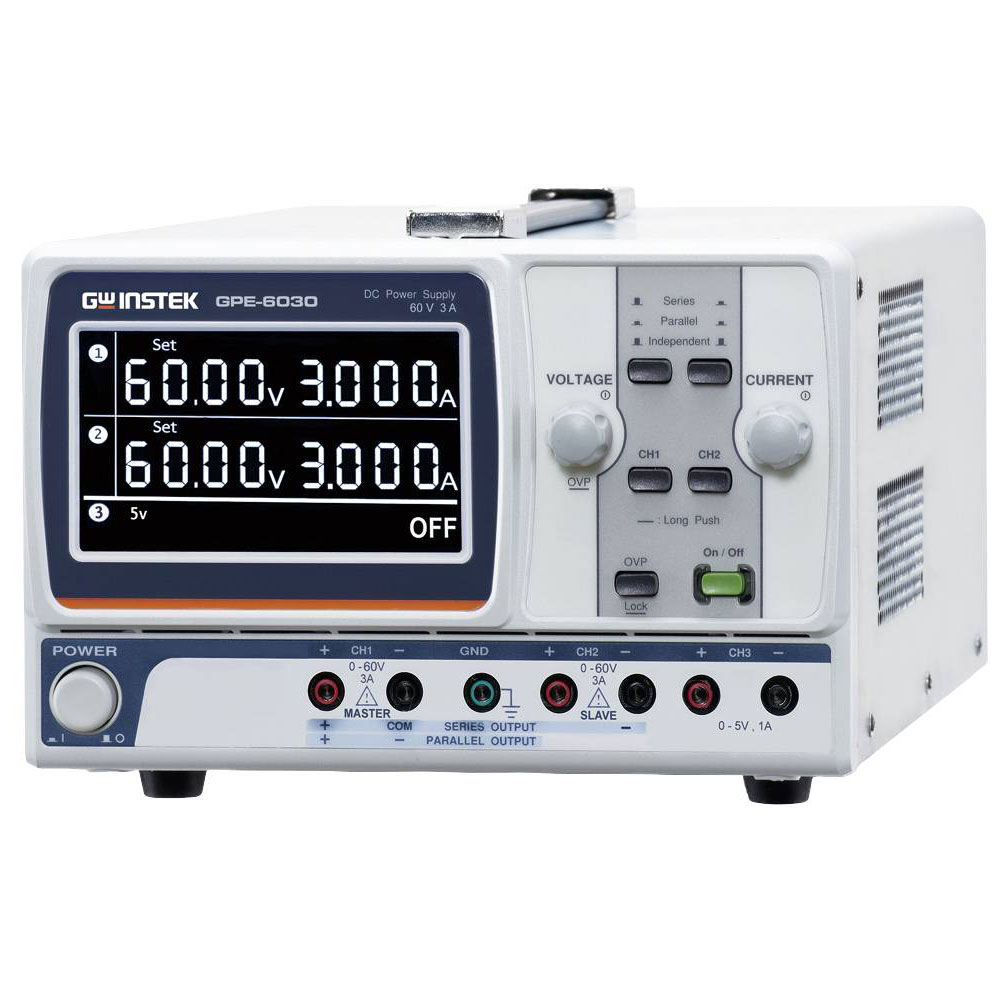

GW Instek GPE-6030 Bench PSU 0-60V 0-3A 385W 3 Outputs

The GPE-3060/6030 are high resolution linear DC-power supplies. They are primarily intended to replace the existing GPC-3060D/6030D models. The GPE-3060/6030 provides an output power of 385 watts and has three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs from 0 to 30 V and 0 to 6 A, while the GPE-6030 supports CH1/CH2 outputs from 0 to 60 V and 0 to 3 A. Both models offer CH3 outputs with 1.8 V, 2.5 V, 3.3 V and 5.0 V at 5 A.

Type	Bench PSU (adjustable voltage)
Calibrated to	Manufacturer's standards (no certificate)
Dim	(L x W x H) 362 x 210 x 155 mm
Height	155mm
Input voltage	230V AC
Length	362mm
Max. output current	3A
Misc Attribute	GPE-6030
No. of outputs	3
Output current (min.)	0A
Output current 2 (max.)	3A
Output current 2 (min.)	0A
Output current 3 (max.)	5A
Output current 3 (min.)	0A
Output voltage (max.)	60V
Output voltage (min.)	0V
Output voltage 2 (max.)	60V
Output voltage 2 (min.)	0V
Output voltage 3 (max.)	5V
Output voltage 3 (min.)	0V
Power	385W
Weight	10kg
Width	210mm
