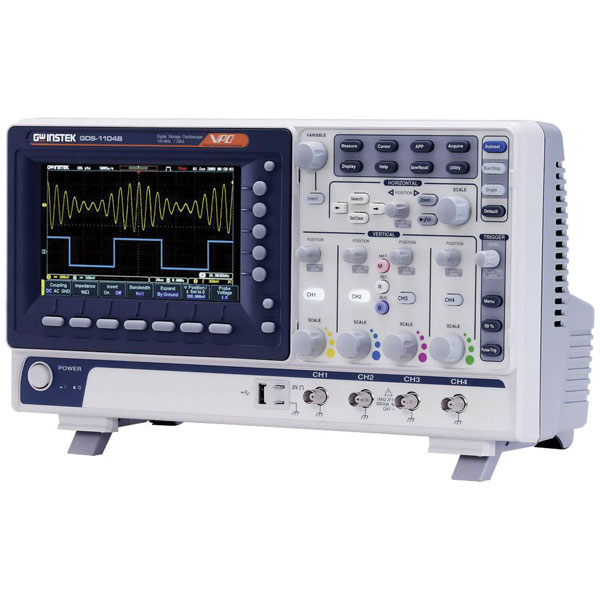

GW Instek GDS-1102B Digital Oscilloscope 100MHz 1GS/s 10MP 8 Bit

The GDS-1000B series has three bandwidth selections - 100 MHz, 70 MHz, 50 MHz and is equipped with analog signal input terminals with four or two channels (50 MHz with only 4 channels). The maximum sampling rate for each individual channel is 1 GSa/s and the Memory depth 10 Mpts per channel independent of each other. The refresh rate, the wave form is 50,000 Wfms/s, which helps the user to monitor the Detailed waveform deviation In addition, enable the 7" WVGA colour LCD display and the 256-colour gradient display function the observation of waveforms with the senses of transparency and gradation. In relation to the horizontal time scale setting knob and the trigger level setting knob offers GW Instek a well-thought-out zero key function, which allows engineers to work more effectively.

Bandwidth	100MHz
Type	Digital
Screen Size	17,78 cm (7")
Calibrated to	Manufacturer's standards (no certificate)
Channel memory depth	10Mpixel
Channel sample rate	1GS/s
Dim	(L x W x H) 127.3 x 380 x 208 mm
Display	800 x 480 TFT WVGA
Height	208mm
Input coupling	AC, DC, GND
Input Impedance	1MΩ
Input Voltage	300 Vrms
Interfaces	USB
Length	127.3mm
Misc Attribute	GDS-1102B
Number of Analogue Inputs	2
Reading category	CAT I
Resolution	8Bit
Time base	3.5 ns
Vertical deflection	1 mV/div to 10 V/div
Width	380mm
