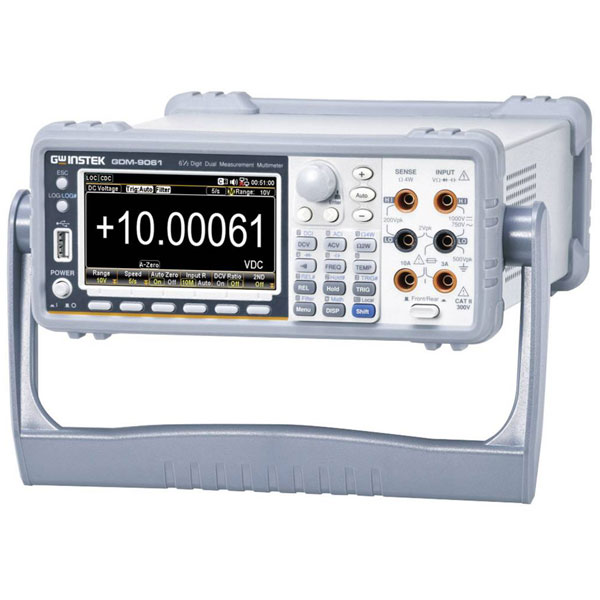

GW Instek GDM-9061 Bench Multimeter 6½ Digit Dual Measurement

GW Instek launches GDM-906X series 6 ½ digit dual measurement multimeter (2 models: GDM-9061 and GDM-9060), featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy.

Type	Bench multimeter
A AC reading range (min.)	1mA
A DC reading range (max.)	10A
AC resistance	10 MΩ
Amperage reading range AC (max.)	10A
Amperage reading range DC (min.)	100µA
Basic accuracy	0.01%
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC/DC
Dc Resistance	10MΩ
Dim	(L x W x H) 302 x 267 x 107 mm
Display	Digital
Display (counts)	1200000
Frequency Range	40 Hz -1MHz
Height	107mm
Length	302mm
Measurement type (details)	True RMS
Misc Attribute	GDM-9061
Power supply (details)	240V AC
Reading range - capacity	1 nF -100µF
Reading range - resistance	100 Ω- 100 MΩ
Temperature	-200 °C - +1372°C
V AC reading range (max.)	750V
V AC reading range (min.)	1V
Voltage DC reading range (max.)	1000V
Voltage metering	AC/DC
Voltage reading range DC (min.)	100mV
Width	267mm
