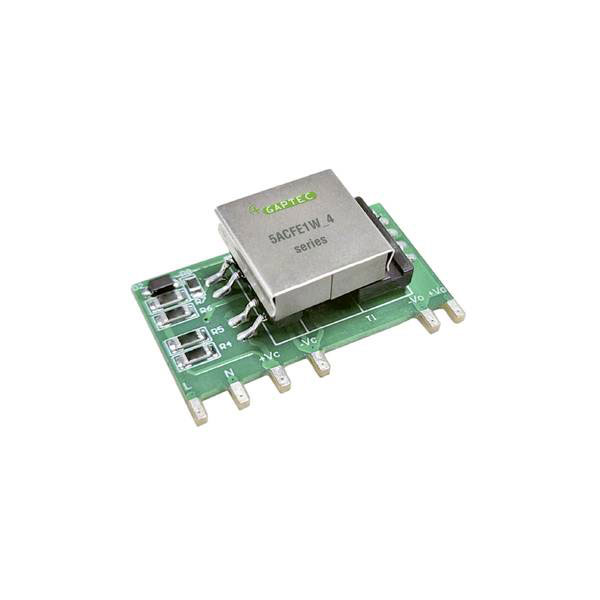

Gaptec 5ACFE1W_12S4 AC/DC converter 12 V DC 420 mA 5 W compact design

Gaptec 5ACFE1W_12S4 is an AC/DC converter specifically designed for applications requiring a reliable conversion from AC to DC power. As part of the computer power supply units category, this device outputs a steady 12 V DC with a current capability of 420 mA, catering to low-power electronic circuits while delivering a maximum power of 5 W. Key attributes of the Gaptec 5ACFE1W_12S4 include high efficiency and compact size, which make it suitable for integration into space-constrained designs such as embedded systems, telecommunications equipment, and consumer electronics. Its design ensures compatibility with varied environmental conditions, thereby making it a versatile solution for engineers working on projects demanding precision and durability.

Output Power Max	5W
Output Voltage	12V DC
Output Current	420mA
Dimensions	(L x W x H) 33.5 x 13.5 x 20.0 mm
Efficiency	78%
Enclosure	SIP 6
Height	20.0mm
Insulation Voltage	4kV
Length	33.5mm
Max. output current	420mA
Operating temperature (max.)	85°C
Operating temperature (min.)	-40°C
Product Type	AC/DC converter
Type	5ACFE1W_4
Weight	35g
Width	13.5mm
