The LV202LED Ultra Violet LED Digital UV exposure unit is a high quality British built UV unit that
has been designed for use in the preparation of photosensitive materials for many industries
incuding:-
- Production of Photo Resist PCBs ie Fortex Microtrak Presensitised Board
- Hot Foil Photo Polymer Plates
- Letter Press Polymer Plates
- Pad Printing Plate (Cliches)
- Sandblasting Stencils
- Glass Etching Stencils or Rubber Stamps etc

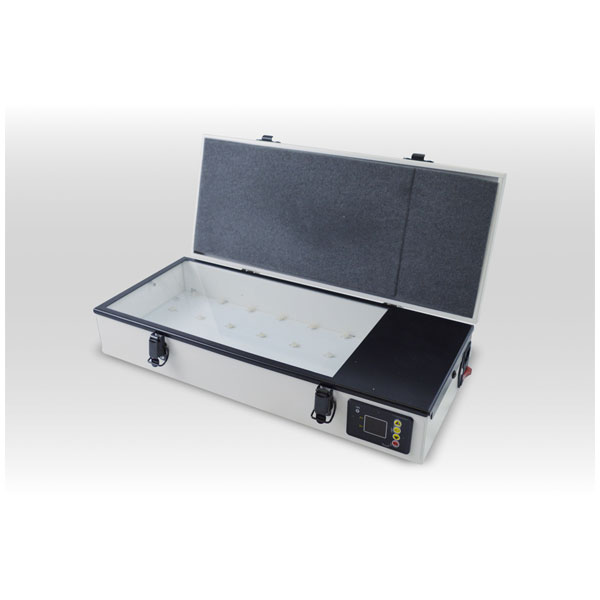

The LED lights are in the base of the unit which means the artwork has to be registered on the
UV sensitive area and then placed face down onto the exposure area. Coloured white, each
unit has a hinged lid containing a pressure pad which, when the lid is held closed by the two
retaining clips, acts to force the artwork and sensitive material firmly together on the UV
illuminated area.
A 1:1 artwork, consisting of opaque transfers on translucent drafting film, is placed on the glass
screen and the photo-sensitive material is placed on top.
The lid incorporates a foam pad
which exerts an even pressure to hold the artwork and photo sensitive material in close contact
when closed. Exposure starts when the digital timer is set to the desired exposure time. The
timer digital timer turns the lamps off as soon as the exposure is completed.
Exposure area 305 x 155mm Panel of 28 UV LED UV LAMPS Peak Wavelength 350-400nmGlass plate with high UV transparency for UV-A transmissionLED lamps for faster consistent exposure times Constant and even pressure from cellular foam in lid All metal construction with Steel case Programmable Digital Timer Mains on/off switch and indicator with IEC Mains cable and 13A plug 220-240VAC 50Hz 10 Watts Power Consumption Weight 4Kg Dimensions of Unit 475 x 120 x 90mm Dimensions of unit 420 x 175 x 90mm Fortex Type LV202LED
