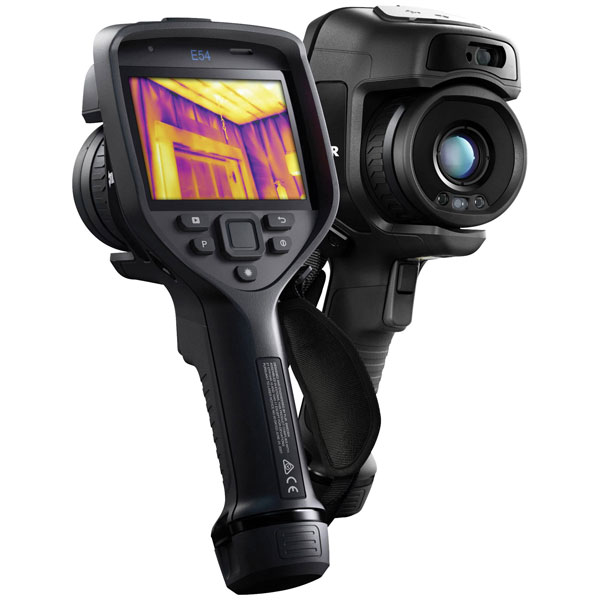

FLIR 84512-1201 E54 IR Camera 320x240px -20 to 650°C MSX® Wi-Fi 30Hz

The FLIR E54 Exx-Series IR camera offers you the resolution and sensitivity required for basic condition monitoring, electrical and mechanical inspections as well as building inspection. The 320 × 240 pixel thermal imaging detector provides accurate temperature measurement up to 650 °C and delivers sharp, colour-rich images that offer even more detail and perspective using the patented FLIR MSX® technology. With the integrated software FLIR Inspection Route you can specify the route so that inspectors can proceed as planned even at larger locations or when checking several areas. For a limited time, you can also get a three-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator software solutions for free when you purchase a E54 camera.

Type	Thermal Imaging Camera
Resolution	320 x 240 Pixel
Accuracy ± °C	2°C
Basic Accuracy	2 %
Calibrated to	Manufacturers standards (with certificate)
Colour schemes	6
Connection	USB 2.0, Bluetooth
Digital zoom	4 x
Display	640 x 480 p
Display Size	4in
Emission level (max.)	1
Focus	Manual
Frame Rate	30hz
Interfaces	USB A (USB 2.0), Bluetooth, DisplayPort, Wi-Fi
IP Rating	IP54
Min. focusing distance	0.15m
Optics	24 x 18°
Temperature Measurement Range	-20 to 650°C
Temperature reading range (max.)	650°C
Temperature reading range (min.)	-20°C
Thermal Sensitivity	40 mK
Weight	1kg
