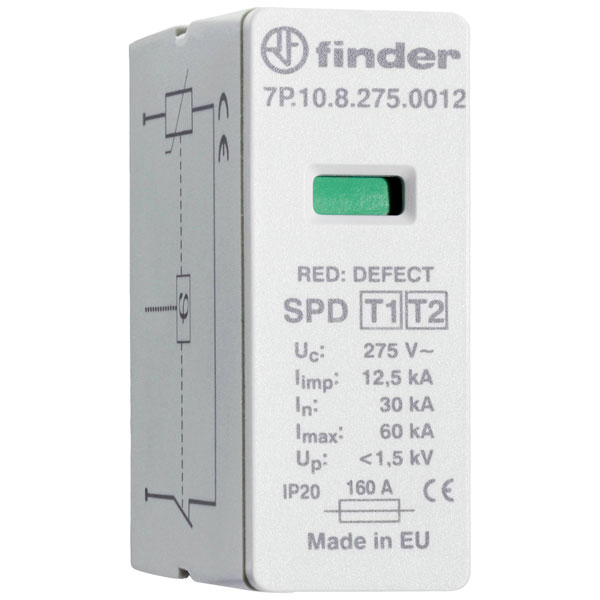

Finder 7P.10.8.275.0012 7P Surge arrester Plug-in 20 kA protection

The Finder 7P.10.8.275.0012 surge arrester is a plug-in device designed for effective surge protection in switchboards. With a capacity of 20 kA, it provides robust defence against electrical surges. This component is ideal for safeguarding electrical systems in industrial and commercial environments.

Type	Surge arrester (plug-in)
Category type 2	false
Construction size	2 modular spacing
Degree of protection (IP)	IP20
Factory colour	Grey
Integrated backup fuse	false
Integrated short-circuit protection	N/A
Integrated short-circuit protection selective to fuse gG	N/A
Leakage Current	20kA
Leakage-current free	N/A
Max. conductor cross section flexible (fine-strand)	N/A
Max. conductor cross section solid (solid, stranded)	N/A
Max. continuous voltage AC	255V
Max. continuous voltage DC	N/A
Max. discharge surge current (8/20)	60kA
Max. overcurrent protection device, parallel connection (fuse)	N/A
Max. overcurrent protection device, series connection (fuse)	N/A
Max. PV-voltage	N/A
Misc Attribute	Varistor-Safety module
Mounting method	DIN rail (top hat rail) 35mm
Nominal discharge surge current (8/20)	100kA
Nominal voltage AC	N/A
Nominal voltage DC	N/A
Pick-up time (details)	25ns
Short-circuit breaking capacity (Isccr)	50kA
Signalling at the device	Optical
Surge protection for	Switchboards
System configuration DC	false
System configuration IT	false
System configuration other	true
System configuration TN	false
System configuration TN-C	false
System configuration TN-C-S	false
System configuration TN-S	false
System configuration TT	false
Voltage protection level	N/A
Voltage protection level L-N	N/A
Voltage protection level N-PE	1.5kV
With remote signalling contact	false
