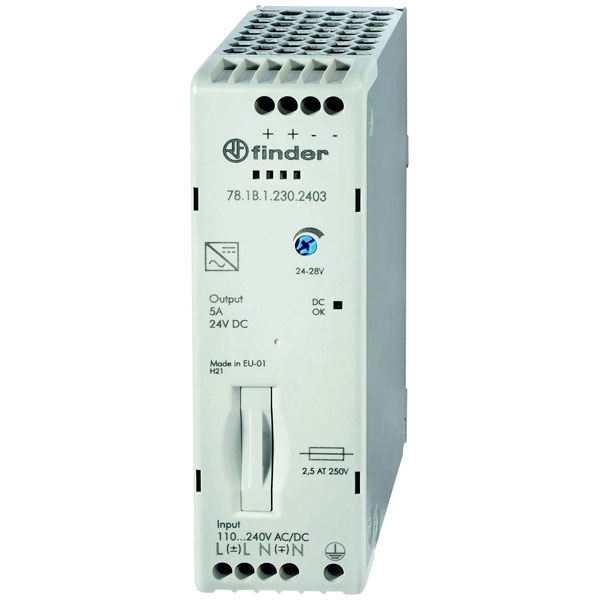

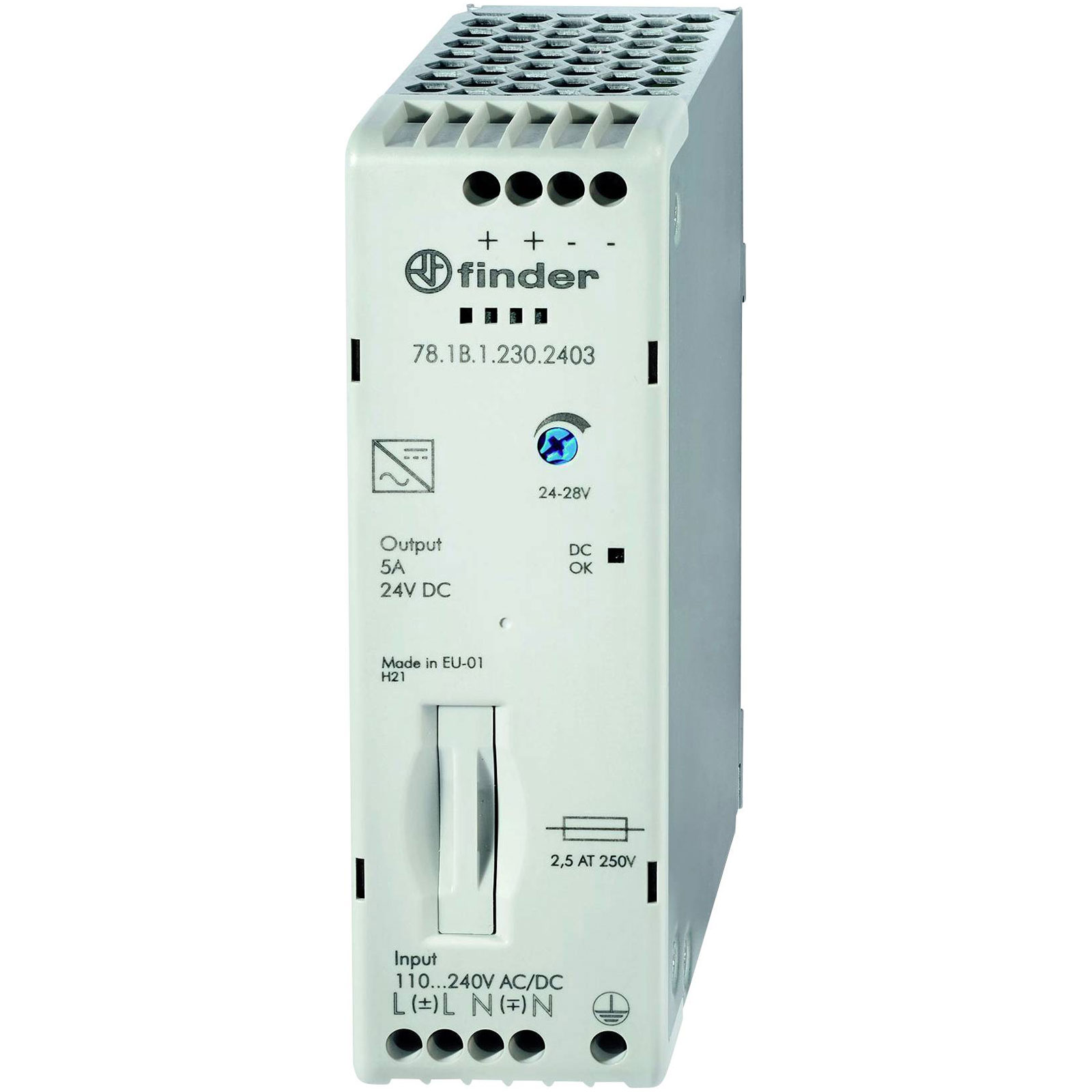

Finder 78.1B.1.230.2403 Rail PSU 24V DC 5A 110W adjustable voltage 24-28V DC

Finder
Order Code:

03-4421

Brand: Finder MPN: 78.1B.1.230.2403 EAN-13: 8012823413990
Qty Unit Price (Ex VAT)
1+ £103.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Finder 78.1B.1.230.2403 is a rail-mounted PSU offering 24V DC output at 5A with a total power of 110W. Ideal for industrial settings, this DIN rail power supply module provides reliable and efficient power management for automation systems. Its compact design ensures easy installation in various control and distribution panels.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 5A
Power Rating 110W
1st secondary output voltage 24 - 28V
Built-in height N/A
Built-in width N/A
Connection Screw terminal
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 100mm
Dim (L x W x H) 100 x 40 x 136 mm
Direct mounting possible N/A
Height 136mm
IP Rating IP20
Length 100mm
Max. output current 5A
Max. output current 1 5A
Max. output current 2 N/A
Max. output current 3 N/A
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute 2 Switched PSU
Nominal value output current 1 4.5A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Output type (power supply units) Adjustable
Output voltage stabilized true
Performance level according to EN ISO 13849-1 None
Power Consumption 268VA
Power Output 110W
Rated supply voltage AC 50 Hz 120 - 240V
Rated supply voltage AC 60 Hz 120 - 240V
Rated supply voltage DC 220 - 220V
Secondary voltage adjustable false
Short-circuit-proof true
SIL according to IEC 61508 None
Stabilized true
Suitable for distribution board true
Suitable for rail mounting true
Suitable for safety functions false
Type of electric connection Screw connection
Voltage type (supply voltage) AC/DC
Wall mounting possible false
Width 40mm
Width in number of modular spacings N/A
