Finder 77D190248650 SSR 60A 660V AC Zero Crossing Switching

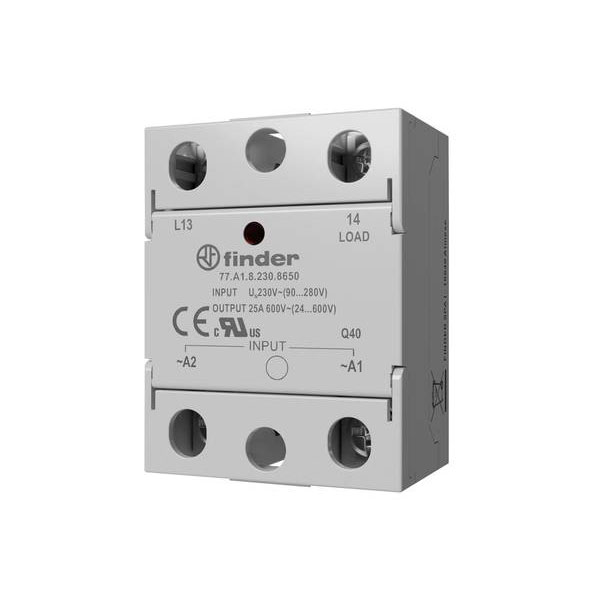

Image Representative of Range

Finder 77D190248650 SSR 60A 660V AC Zero Crossing Switching

Finder
Order Code:

03-4413

Brand: Finder MPN: 77D190248650 EAN-13: 8012823450575
Qty Unit Price (Ex VAT)
1+ £38.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

Finder's SSR 77D190248650 is a solid state relay with a maximum switching voltage of 660 V AC and zero crossing functionality. It is designed for efficient control in high-voltage applications and can handle currents up to 60 A. Typically, it is used in industrial automation, motor control, and heating systems.
Type SSR
Switching Current 660V AC
Length 59mm
Width 45mm
Height 29.40mm
Contact Type 1 maker
Current load (max.) 60A
IP Rating IP20
Max. temperature +80°C
Min. temperature -30°C
Misc Attribute 77.D1.9.024.8650
Number of phases 1
Operating Voltage 24 - 660
Permanent current (max.) 60A
Rated control supply voltage DC 24 - 24V
Rated operation current Ie at AC-1 60A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing true
Switching type Zero crossing
Switching voltage (min.) 24V AC
Voltage type for actuating DC
