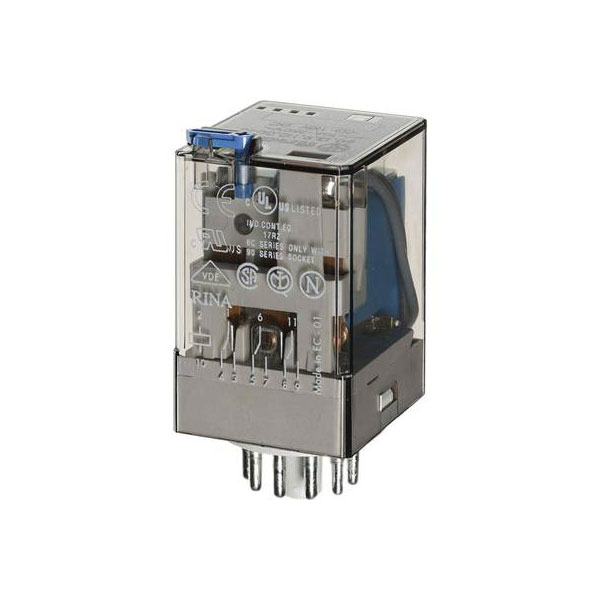

Finder 60.13.9.110.5240 Relay 110V DC 6A 3 CO AgNi gold-plated contacts

The Finder 60.13.9.110.5240 plug-in relay operates at 110 V DC with a switching capacity of 6 A and features 3 change-over contacts. It is ideal for use in printed circuit boards, providing reliable performance in various electronic applications. Typical uses include automation systems, industrial controls, and telecommunications equipment.

Coil Voltage	110V DC
Contact Configuration	3CO (3PDT)
Switching Current	6A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	36.4mm
Dimensions	(W x H x D) 32.5 x 54.2 x 36.4 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	54.2mm
IP Rating	IP20
Length	36.4mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Gold
Mounting Type	Plug-in
Nominal Current	6A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	110 - 110V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Double contact
Voltage type for actuating	DC
Width	32.5mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
