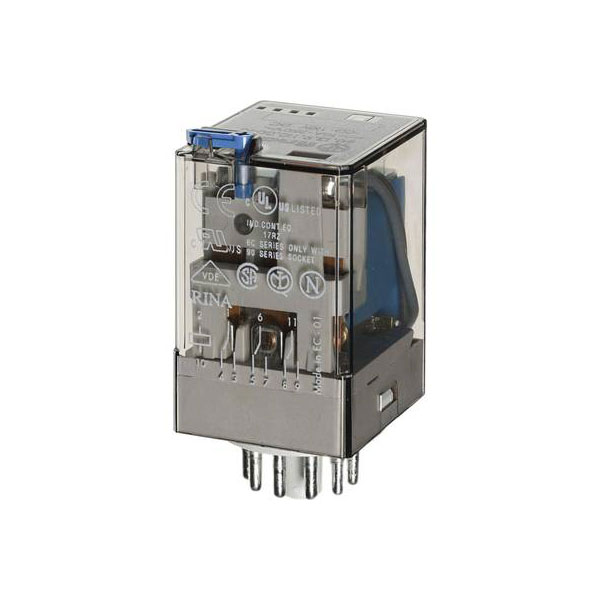

Finder 60.13.9.060.5240 Plug-in Relay 60V DC 6A 3 change-overs AgNi contacts

The Finder 60.13.9.060.5240 is a plug-in relay designed for 60 V DC operation with a load capacity of 6 A. It features three change-over contacts and is suitable for printed circuit board mounting. This relay is typically used in automation systems and electrical control applications.

Coil Voltage	60V DC
Contact Configuration	3CO (3PDT)
Switching Current	6A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	36.4mm
Dimensions	(W x H x D) 32.5 x 54.2 x 36.4 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	54.2mm
IP Rating	IP20
Length	36.4mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Gold
Mounting Type	Plug-in
Nominal Current	6A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	60 - 60V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Double contact
Voltage type for actuating	DC
Width	32.5mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
