Finder 56.42.8.230.0000 power PCB Relay 230 VAC 12A 2 change-overs

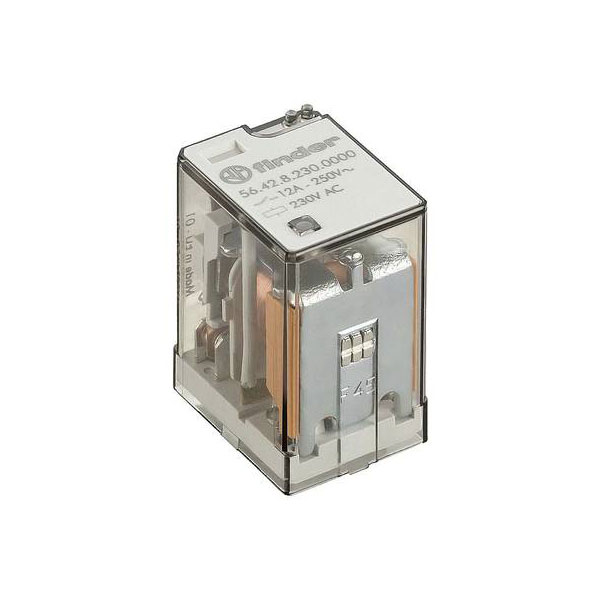

Image Representative of Range

Finder 56.42.8.230.0000 power PCB Relay 230 VAC 12A 2 change-overs

Finder
Order Code:

03-4185

Brand: Finder MPN: 56.42.8.230.0000 EAN-13: 8012823249841
Qty Unit Price (Ex VAT)
1+ £12.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

Manufactured by Finder, this PCB relay is designed for a voltage of 230 V AC and can handle a current of 12 A. It features two change-over contacts, making it suitable for switching applications. Commonly used in control panels and automation systems, it provides reliable performance for industrial and commercial applications.
Coil Voltage 230V AC
Contact Configuration 2CO (DPDT)
Switching Current 12A
Complete with socket false
Connection Print
Degree of protection (IP) N/A
Depth 27.7mm
Dimensions (W x H x D) 20.7 x 37.7 x 27.7 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 37.7mm
IP Rating IP20
Material contact Other copper alloys
Material of contact insert Duroplast
Material of contact surface Untreated
Mounting Type PCB
Nominal Current 12A
Number of contacts as change-over contact 2
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Rated control supply voltage AC 50 Hz 230 - 230V
Rated control supply voltage AC 60 Hz 230 - 230V
Type PCB relay
Type of electric connection PCB connection
Type of switch contact Single contact
Voltage type for actuating AC
Width 20.7mm
With detachable clamps N/A
With forced-guided contacts false
With LED indication false
