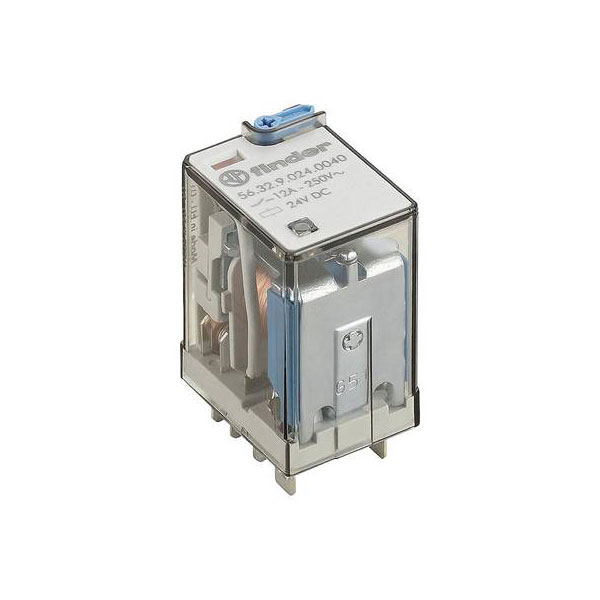

Finder 56.32.9.024.0000 Plug-in Relay 24 V DC 12 A 2 change-overs

The Finder 56.32.9.024.0000 is a plug-in relay designed for a 24 V DC supply with a 12 A switching capacity and features two change-over contacts. This relay is ideal for printed circuit board mounting, providing reliable performance in various electrical applications. Typical uses include automation systems, control panels, and telecommunications equipment.

Coil Voltage	24V DC
Contact Configuration	2CO (DPDT)
Switching Current	12A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.7 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.7mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Plug-in
Nominal Current	12A
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	24 - 24V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
