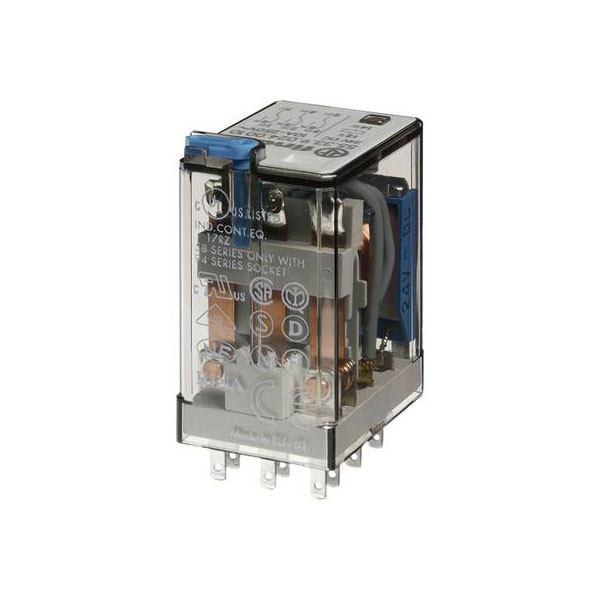

Finder 55.33.9.110.0010 Relay 110V DC 10A 3 change-overs AgNi contacts

The Finder 55.33.9.110.0010 Plug-in Relay operates at 110 V DC with a current rating of 10 A and features three change-over contacts. It is suitable for applications involving printed circuit boards and is often used in industrial control systems. This relay is ideal for situations requiring reliable switching capabilities in compact designs.

Coil Voltage	110V DC
Contact Configuration	3CO (3PDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Plug-in
Nominal Current	10A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	110 - 110V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
