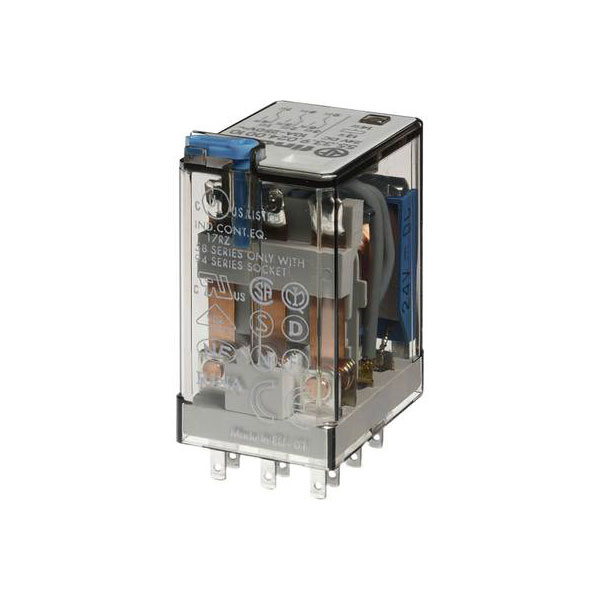

Finder 55.33.9.024.5000 Plug-in Relay 24 V DC 10 A 3 change-overs

Finder's 55.33.9.024.5000 Plug-in relay operates at 24 V DC and supports up to 10 A with 3 change-over contacts. This PCB mount relay is ideal for printed circuit boards in control panels and automation systems. It is commonly used in industrial applications requiring reliable switching capabilities.

Coil Voltage	24V DC
Contact Configuration	3CO (3PDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Gold
Mounting Type	PCB
Nominal Current	10A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	24 - 24V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
