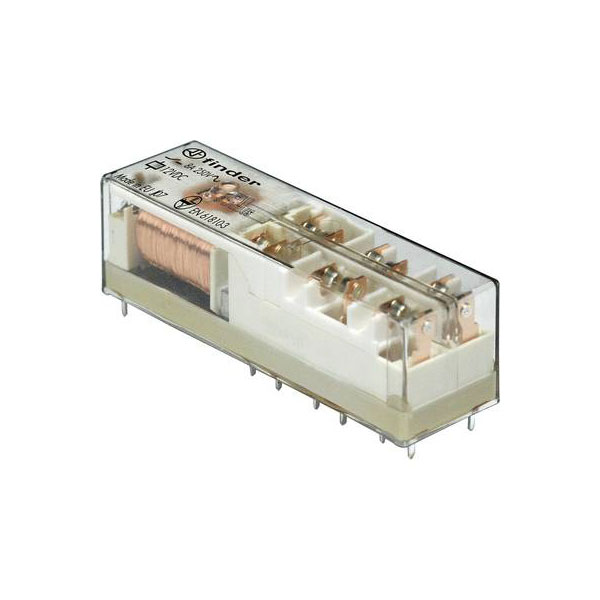

The Finder 50.16.9.024.5420 is a PCB relay designed for mounting on printed circuit boards, operating at 24 V DC with an 8 A switching current. It features two breakers and four makers, making it suitable for compact and efficient control systems. Typically used in automation, signal processing, and control panels, it ensures reliable performance in electronic applications.
| Coil Voltage |
24V DC |
| Contact Configuration |
4CO (4PDT) |
| Switching Current |
8A |
| Connection |
Print |
| Depth |
55mm |
| Dimensions |
(W x H x D) 16.5 x 16.5 x 55 mm |
| Evaluation inputs |
Other |
| Height |
16.5mm |
| IP Rating |
IP67 |
| Length |
29.0mm |
| Model |
Other |
| Mounting Type |
PCB |
| Number of outputs, safety related, delayed, semiconductors |
N/A |
| Number of outputs, safety related, delayed, with contact |
N/A |
| Number of outputs, safety related, undelayed, semiconductors |
N/A |
| Number of outputs, safety related, undelayed, with contact |
6 |
| Number of outputs, signalling function, delayed, semiconductors |
N/A |
| Number of outputs, signalling function, delayed, with contact |
N/A |
| Number of outputs, signalling function, undelayed, semiconductors |
N/A |
| Number of outputs, signalling function, undelayed, with contact |
N/A |
| Performance level according to EN ISO 13849-1 |
N/A |
| Rated control supply voltage DC |
24 - 24 |
| SIL according to IEC 61508 |
N/A |
| Stop category according to IEC 60204 |
N/A |
| Suitable for monitoring of emergency-stop circuits |
true |
| Suitable for monitoring of magnetic switches |
N/A |
| Suitable for monitoring of optoelectronic protection equipment |
N/A |
| Suitable for monitoring of position switches |
N/A |
| Suitable for monitoring of proximity switches |
N/A |
| Suitable for monitoring of tactile sensors |
N/A |
| Suitable for monitoring of valves |
N/A |
| Suitable for rail mounting |
false |
| Type |
PCB relay |
| Type of electric connection |
PCB connection |
| Type of safety according to IEC 61496-1 |
N/A |
| Voltage type for actuating |
DC |
| Width |
16.5mm |
| With approval according to UL |
true |
| With approval for BG BIA |
N/A |
| With approval for TÜV |
true |
| With detachable clamps |
false |
| With feedback circuit |
N/A |
| With muting function |
N/A |
| With start input |
N/A |
