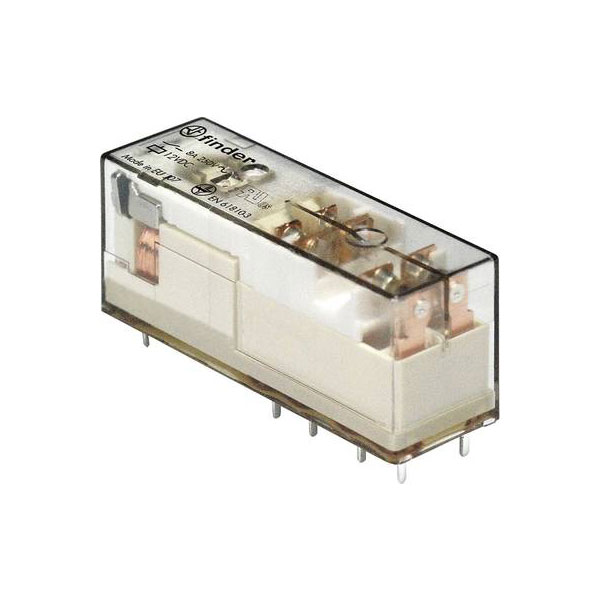

Finder 50.14.9.012.4310 PCB Relay 12V DC 8A 3NO/1NC 5mm AgSnO2 EN61810-3

The Finder 50.14.9.012.4310 is a PCB relay featuring a 12 V DC coil and an 8 A switching capacity. This mini relay is typically used in printed circuit boards for controlling electrical loads. Ideal for applications requiring reliable switching in compact spaces.

Coil Voltage	12V DC
Contact Configuration	3NO+1NC
Switching Current	8A
Connection	Print
Depth	40mm
Dimensions	(W x H x D) 13 x 16.5 x 40 mm
Evaluation inputs	Other
Height	16.5mm
IP Rating	IP67
Length	29.0mm
Model	Other
Mounting Type	PCB
Number of outputs, safety related, delayed, semiconductors	N/A
Number of outputs, safety related, delayed, with contact	N/A
Number of outputs, safety related, undelayed, semiconductors	N/A
Number of outputs, safety related, undelayed, with contact	4
Number of outputs, signalling function, delayed, semiconductors	N/A
Number of outputs, signalling function, delayed, with contact	N/A
Number of outputs, signalling function, undelayed, semiconductors	N/A
Number of outputs, signalling function, undelayed, with contact	N/A
Performance level according to EN ISO 13849-1	N/A
Rated control supply voltage DC	12 - 12
SIL according to IEC 61508	N/A
Stop category according to IEC 60204	N/A
Suitable for monitoring of emergency-stop circuits	true
Suitable for monitoring of magnetic switches	N/A
Suitable for monitoring of optoelectronic protection equipment	N/A
Suitable for monitoring of position switches	N/A
Suitable for monitoring of proximity switches	N/A
Suitable for monitoring of tactile sensors	N/A
Suitable for monitoring of valves	N/A
Suitable for rail mounting	false
Type	PCB relay
Type of electric connection	PCB connection
Type of safety according to IEC 61496-1	N/A
Voltage type for actuating	DC
Width	13mm
With approval according to UL	true
With approval for BG BIA	N/A
With approval for TÜV	true
With detachable clamps	false
With feedback circuit	N/A
With muting function	N/A
With start input	N/A
