Finder 41.81.7.012.9024 SSR Relay 12V DC 5A NO RT III 5.0mm grid

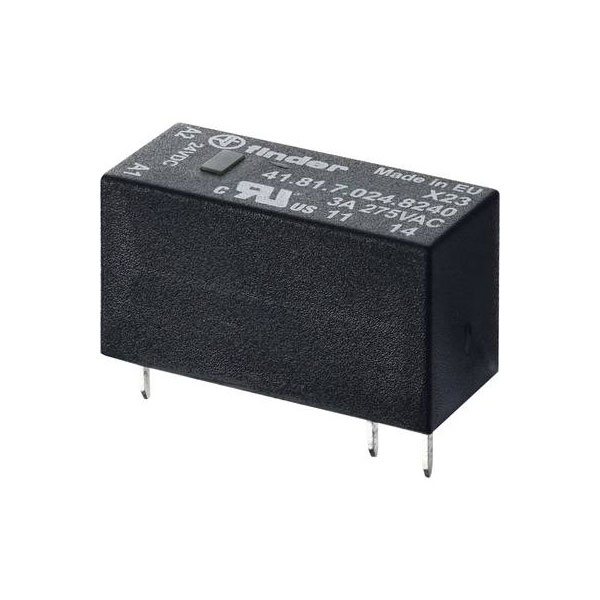

Image Representative of Range

Finder 41.81.7.012.9024 SSR Relay 12V DC 5A NO RT III 5.0mm grid

Finder
Order Code:

03-3871

Brand: Finder MPN: 41.81.7.012.9024 EAN-13: 2050011626667
Qty Unit Price (Ex VAT)
1+ £21.71
10+ £21.55
25+ £21.38
50+ £21.22
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
18 in stock, despatched in 4 working days

The Finder SSR 41.81.7.012.9024 is a solid state relay with semiconductor switch technology, featuring zero crossing capabilities. It is designed for reliable and efficient electronic switching, enhancing performance in controlling AC loads. Typical applications include industrial automation, temperature control systems, and motor control.
Type SSR
Input Voltage 12V DC
Contact Configuration SPST-NO
Switching Voltage 24V DC
Control voltage (min.) 12V DC
Max. output current 5A
Number of phases 1
Operating Voltage 1.5 - 24
Output voltage (min.) 1.5V DC
Rated control supply voltage DC 12 - 12V
Rated operation current Ie at AC-1 5A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing false
Voltage type for actuating DC
