Finder 40.52.7.014.0000 PCB Relay 14V DC 8A 2 change-over contacts

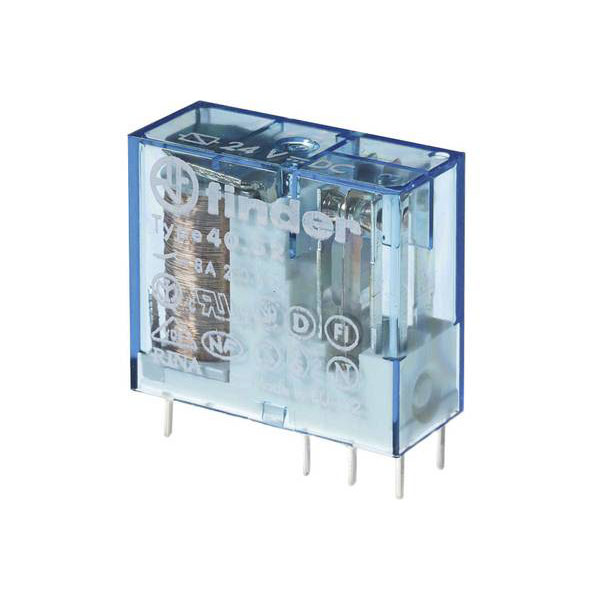

Image Representative of Range

Finder 40.52.7.014.0000 PCB Relay 14V DC 8A 2 change-over contacts

Finder
Order Code:

03-3736

Brand: Finder MPN: 40.52.7.014.0000 EAN-13: 2050011656855
Qty Unit Price (Ex VAT)
1+ £4.72
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

The Finder 40.52.7.014.0000 PCB relay operates at 14 V DC and can handle an 8 A load with two change-overs. This mini relay is designed for printed circuit board mounting, suitable for compact and efficient switching applications. It is ideal for automotive, industrial control, and home automation systems.
Coil Voltage 14V DC
Contact Configuration 2CO (DPDT)
Switching Current 8A
Complete with socket false
Degree of protection (IP) N/A
Depth 29mm
Dimensions (W x H x D) 12.4 x 25 x 29 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 25mm
IP Rating IP20
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Untreated
Mounting Type PCB
Nominal Current 8A
Number of contacts as change-over contact 2
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Rated control supply voltage DC 14 - 14V
Type PCB relay
Type of electric connection Plug-in connection
Type of switch contact Single contact
Voltage type for actuating DC
Width 12.4mm
With detachable clamps N/A
With forced-guided contacts false
With LED indication false
