Finder 38.51.7.060.0050 Relay 60V DC 6A DIN Rail AgNi contact LED integrated

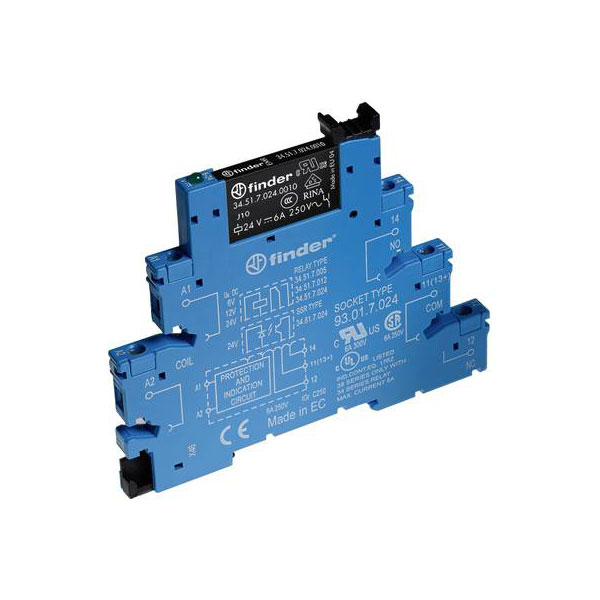

Image Representative of Range

Finder 38.51.7.060.0050 Relay 60V DC 6A DIN Rail AgNi contact LED integrated

Finder
Order Code:

03-3613

Brand: Finder MPN: 38.51.7.060.0050 EAN-13: 2050011580297
Qty Unit Price (Ex VAT)
1+ £16.56
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

The Finder 38.51.7.060.0050 is an interface relay with a crossbar switch, operating at 60 V DC and capable of handling 6 A. This component features one change-over contact and is commonly used in switching and control applications. Typical applications include automation systems, signal switching, and circuit isolation.
Type Crossbar switch
Complete with socket true
Connection Screw terminal
Contact Type 1 change-over
Degree of protection (IP) IP20
Depth 75.6mm
Dim (W x H x D) 6.2 x 87.9 x 75.6 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 87.9mm
IP Rating IP20
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Untreated
Nominal Current 6A
Nominal Voltage 60V DC
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Rated control supply voltage DC 60 - 60V
Switching current (max.) 6A
Type of electric connection Screw connection
Type of switch contact Single contact
Voltage type for actuating DC
Width 6.2mm
With detachable clamps false
With forced-guided contacts false
With LED indication true
