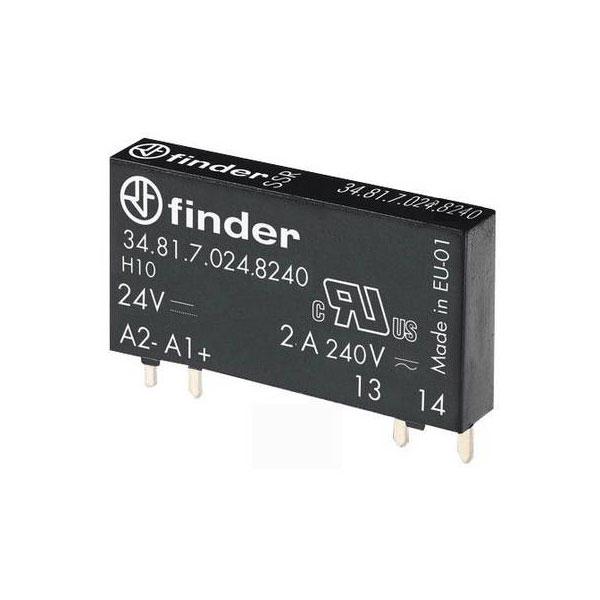

Finder 34.81.7.005.8240 SSR 5VDC 230VAC 2A RT II narrow PCB Relay

Image Representative of Range

Finder 34.81.7.005.8240 SSR 5VDC 230VAC 2A RT II narrow PCB Relay

Finder
Order Code:

03-3583

Brand: Finder MPN: 34.81.7.005.8240 EAN-13: 2050011620580
Qty Unit Price (Ex VAT)
1+ £22.91
10+ £22.73
25+ £22.56
50+ £22.39
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
36 in stock, despatched in 4 working days

The Finder electronic relay 34.81.7.005.8240 is a solid state relay featuring zero crossing switching. It is designed for reliable and efficient semiconductor switching in various electronic applications. Typical uses include controlling heaters, motors, and lamps where noise and wear need to be minimised.
Type SSR
Input Voltage 12V DC
Contact Configuration SPST-NO
Switching Voltage 275V AC
Length 28mm
Height 15.6mm
Control voltage (min.) 3.5V DC
Max. output current 2A
Number of phases 1
Operating Voltage 12 - 275
Output voltage (min.) 12V AC
Rated control supply voltage DC 5 - 5V
Rated operation current Ie at AC-1 2A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing true
Voltage type for actuating DC
