Escha 8046944 Connectors Durable Aluminium, IP67, S370 Series.

Escha
Standard range
Order Code:

11-7762

Brand: Escha MPN: 8046944 EAN-13: 2050001554154
Qty Unit Price (Ex VAT)
1+ £45.42
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

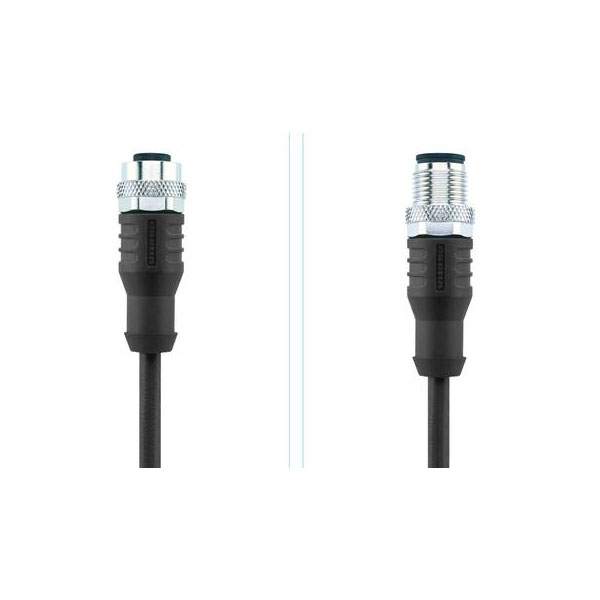

The Escha sensor/actuator connector 8046944, model AL-WAK12-2-AL-WAS12/S370, is a pre-fabricated component designed for reliable signal transmission. It features robust construction suitable for demanding environments. Typical applications include industrial automation and machinery connectivity.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 2.00m
Coding A
Connection side A M12 plug, straight
Connection side B M12 plug, straight
Connector standard Sensor connector
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.14mm²
IP rating IP67/IP69K
Jacket material PUR
max. cross section 0.14mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WAK12-2-AL-WAS12/S370
No. of pins 12
Nominal current 1.50A
Nominal current - rounded value 1.5A
Nominal voltage 30V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
