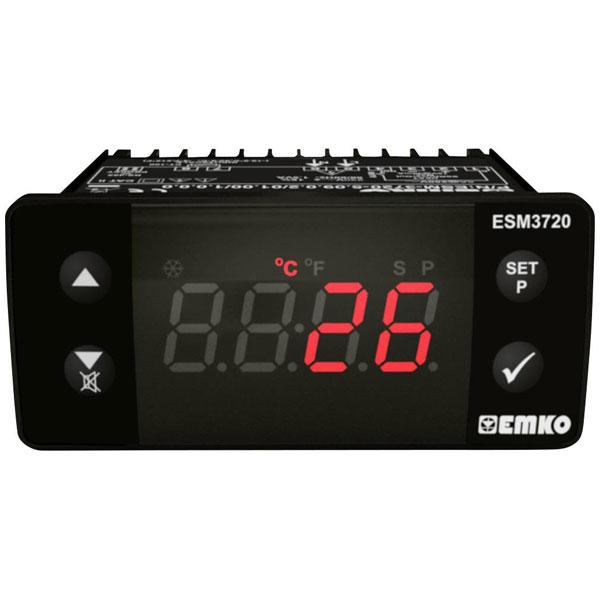

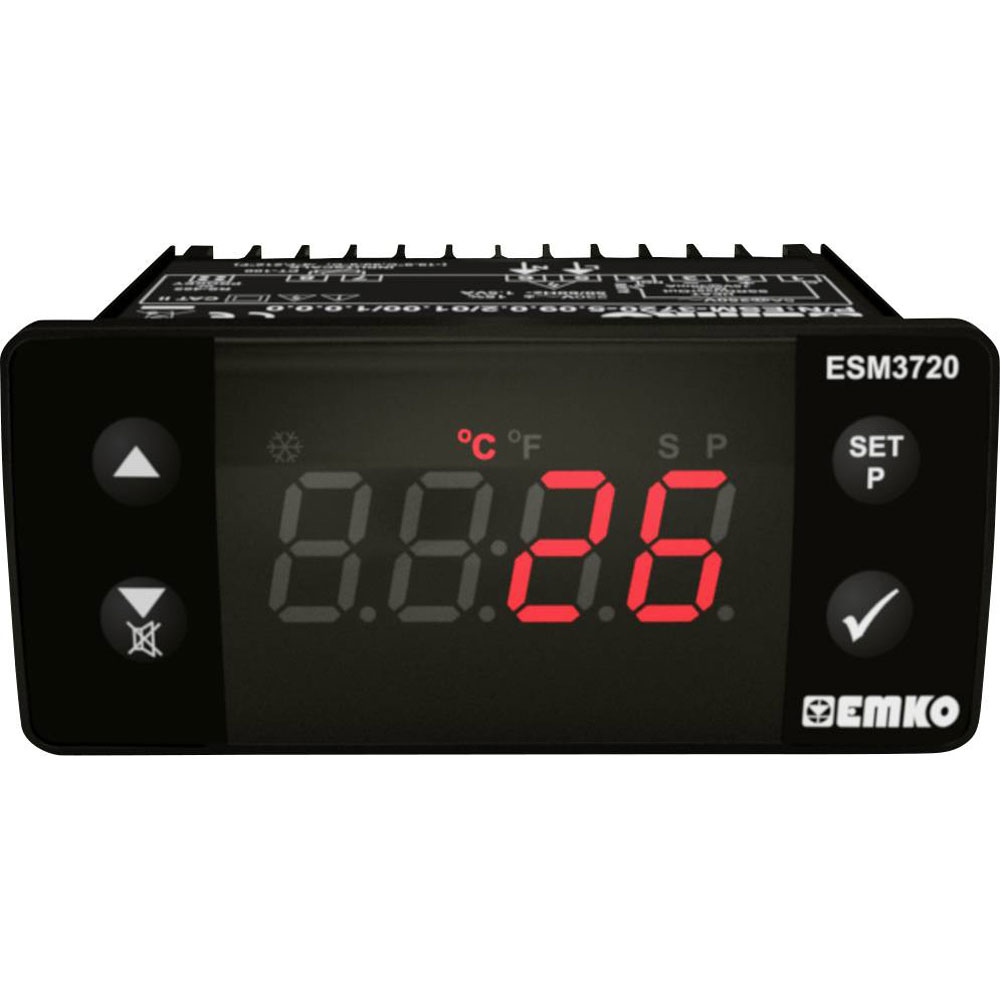

Emko ESM-3720.8.12.0.2/01.00/1.0.0.0 PID Temperature Controller PTC -50–130°C

The Emko ESM-3720.8.12.0.2/01.00/1.0.0.0 temperature controller is a PID and bang-bang regulator designed for precise thermal management. Measuring 65 x 76 x 35 mm, it supports a temperature range of -50 to 130 °C, making it suitable for various industrial applications. Typical uses include maintaining temperature stability in manufacturing processes and climate control in sensitive environments.

Type	PTC
Dim	(L x W x H) 65 x 76 x 35 mm
Factory colour	Black
Height	35mm
IP Rating	Front: IP65 / connection: IP20
Length	65mm
Min. temperature reading	-50°C
Mounting Type	Recess-mount
Number of relay outputs	2
Outputs (thermostats)	SSR
Reading range	-50 up to 130°C
Recess depth	65mm
Temperature Range	130°C
Thermostat type	Bang-bang, PID
Voltage Range	N/A
Weight	200g
Width	76mm
