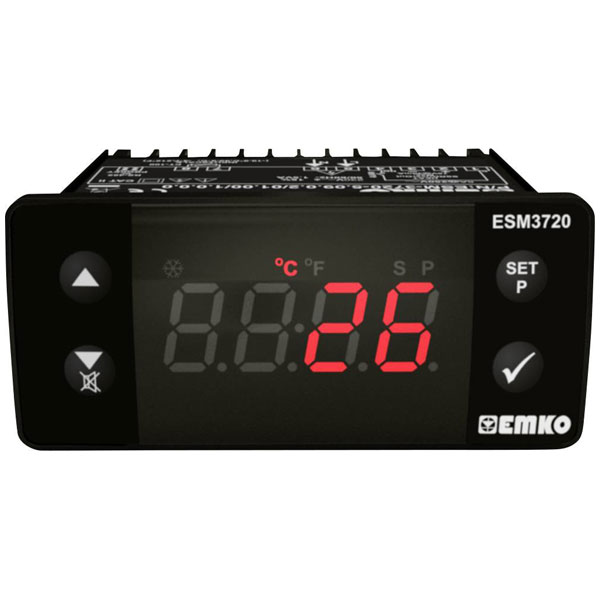

Emko ESM-3720.5.14 Temperature Controller PID/Bang-bang Pt1000 -50 to 400°C

Emko manufactures the ESM-3720.5.14.0.1/01.00/1.0.0.0, a versatile temperature controller featuring both bang-bang and PID control modes, suitable for Pt1000 sensors. This device can operate in a range of -50 to 400 °C and is equipped with a 16 A relay, measuring 65 x 76 x 35 mm. It is typically used in various industrial applications for precise temperature regulation.

Type	Pt1000
Dim	(L x W x H) 65 x 76 x 35 mm
Factory colour	Black
Height	35mm
IP Rating	Front: IP65 / connection: IP20
Length	65mm
Min. temperature reading	-50°C
Mounting Type	Recess-mount
Number of relay outputs	2
Outputs (thermostats)	16 A relay
Reading range	-50 up to 400°C
Recess depth	65mm
Temperature Range	400°C
Thermostat type	Bang-bang, PID
Voltage Range	230V AC
Weight	200g
Width	76mm
