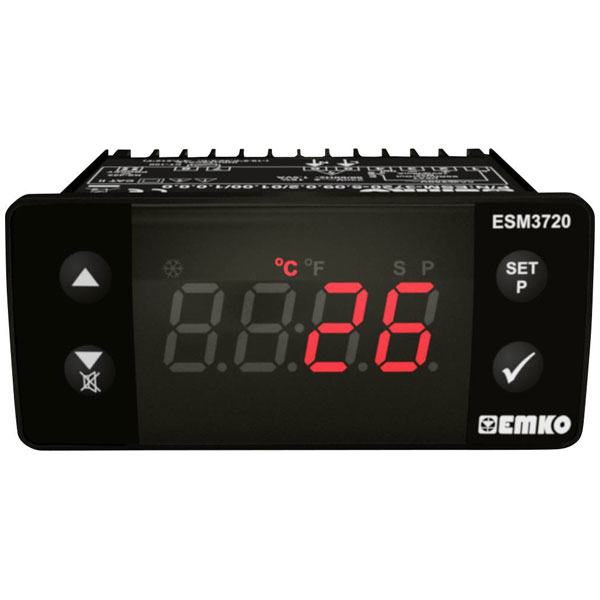

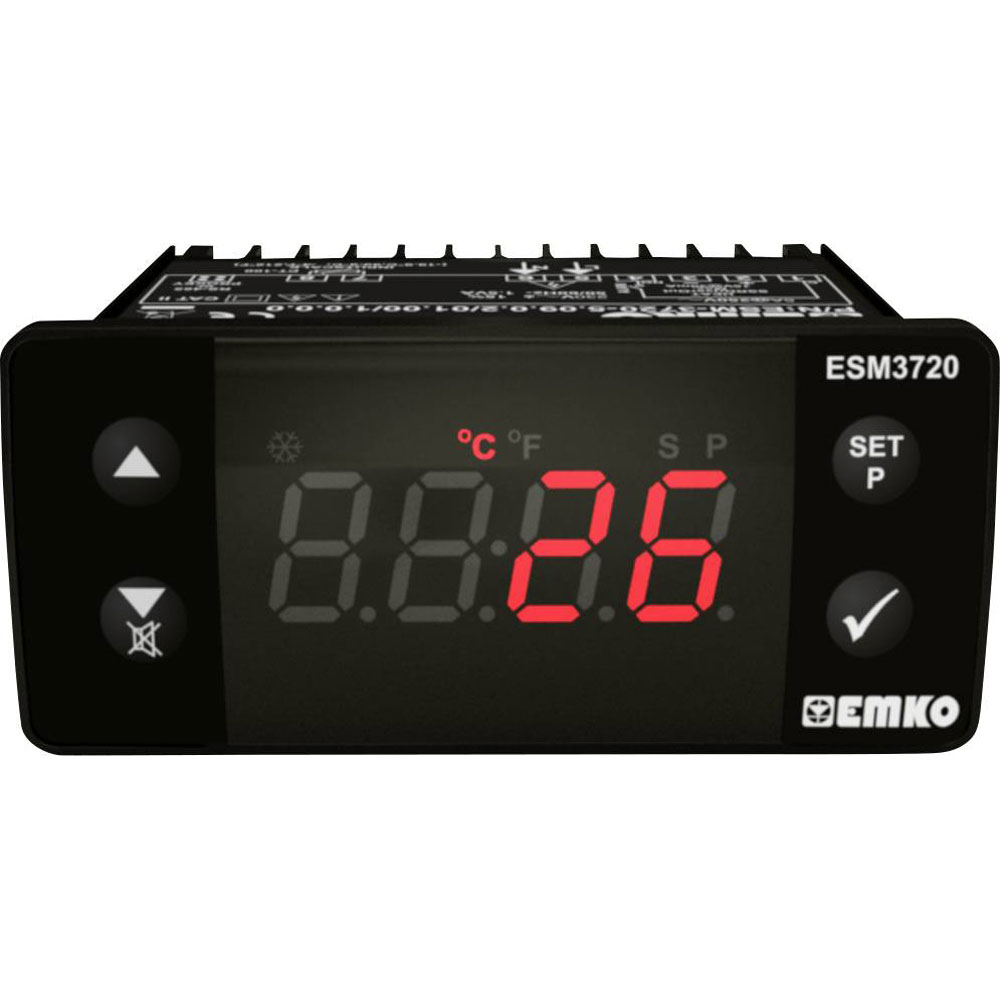

Emko ESM-3720.5.11.0.2 Temperature Controller PID -50 to 400°C PT100

Emko
Standard range
Order Code:

09-0643

Brand: Emko MPN: ESM-3720.5.11.0.2/01.00/1.0.0.0 EAN-13: 4064161288710
Qty Unit Price (Ex VAT)
1+ £54.99
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

The Emko ESM-3720.5.11.0.2/01.00/1.0.0.0 is a temperature controller ideal for precise temperature regulation, featuring both bang-bang and PID control modes. It supports Pt100 sensors and operates within a range of -50 to 400 °C, with dimensions of 65 x 76 x 35 mm. This controller is typically used in industrial applications where accurate and reliable temperature management is critical.
Type Temperature controller
Dim (L x W x H) 65 x 76 x 35 mm
Factory colour Black
Height 35mm
IP rating Front: IP65 / connection: IP20
Length 65mm
Manufacturer part # ESM-3720.5.11.0.2/01.00/1.0.0.0
Max. temperature reading 400°C
Min. temperature reading -50°C
Misc Attribute ESM-3720.5.11.0.2/01.00/1.0.0.0
Mounting Type Recess-mount
No. of relay outputs 2
Operating voltage 230V AC
Outputs (thermostats) SSR
Reading range -50 up to 400 °C
Recess depth 65mm
Sensor type Pt100
Thermostat type Bang-bang, PID
Weight 200g
Width 76mm
