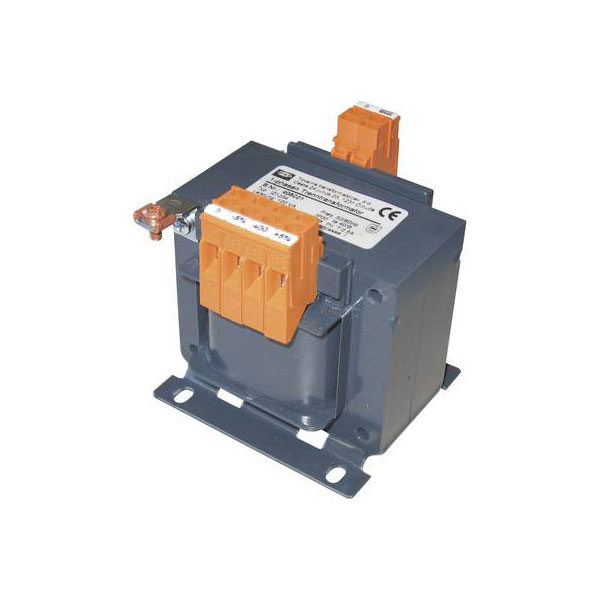

Elma TT IZ1242 Isolation Transformer 400V 230V 800VA Voltage Control

The Elma TT IZ1242 is an isolation transformer that converts 400 V to 230 V AC, with a power capacity of 800 VA and a current rating of 3.50 A. Designed for safety, it is used in automation and mains transformer applications where galvanic isolation is required. This universal transformer ensures electrical isolation, thereby enhancing operational security in various electrical systems.

Type	Isolation transformer
Secondary Voltage	230V AC
Power Rating	800VA
Connection	Screw terminal
Current Rating	3.50A
Design Type	Open
Dimensions	(L x W x H) 150 x 129.4 x 142 mm
Frequency Range	50 - 60Hz
Height	142mm
Insulation class	Ta40/B
Length	150mm
Mounting Type	L-piece
Number of Inputs	1
Number of Outputs	1
Primary Voltages	1 x 400 V
Standards	IEC 61558-2-4, VDE 0570 Part 2-4
Weight	11kg
Width	129.4mm
