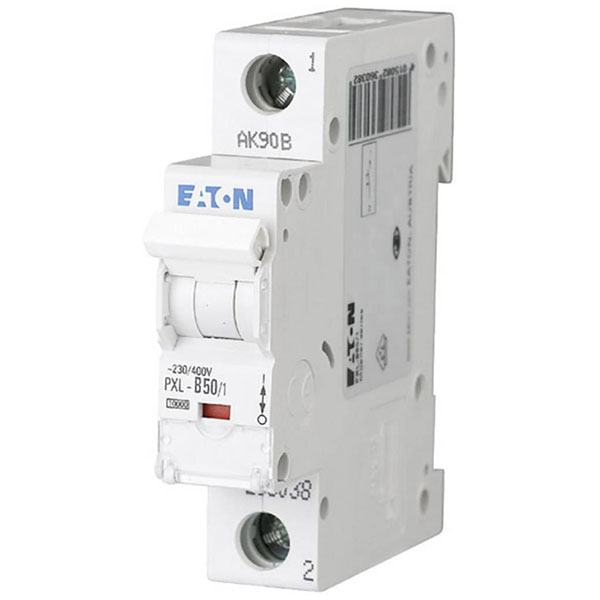

Eaton 236038 PXL-B50 Circuit breaker 1-pin 50A 230V AC with serial

Eaton
Order Code:

02-6325

Brand: Eaton MPN: 236038 EAN-13: 4015082360382
Qty Unit Price (Ex VAT)
1+ £22.55
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
12 available to back orderBack-order availability date - 11/01/2026

The Eaton PXL-B50/1 circuit breaker is a single-pole device rated for 50 A at 230 V AC. It provides reliable overcurrent protection and is suitable for use in residential and commercial electrical systems. This circuit breaker helps ensure safety by interrupting excess current flow, preventing potential electrical hazards.
Type Circuit breaker
Current Ratng 50A
Additional equipment possible TRUE
Ambient temperature during operating -25-55°C
Built-in depth 70.5mm
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 1-25mm²
Connectable conductor cross section solid-core 1-25mm²
Current limiting class 3
Degree of protection (IP) IP20
Depth 70.5mm
Explosion-proof FALSE
Flush-mounted installation FALSE
Frequency 50-60Hz
Misc Attribute Switchgear for domestic and commercial applications
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 3
Pollution degree 2
Power loss 4.4W
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 0kA
Release characteristic B
Release characteristics B
Switch-off capacity 10kA
Voltage Rating 230V
Voltage type AC
Width in number of modular spacings 1
