Eaton 229748 FAK Foot Switch/Buzzer 230V 6A IP67 1x Latching

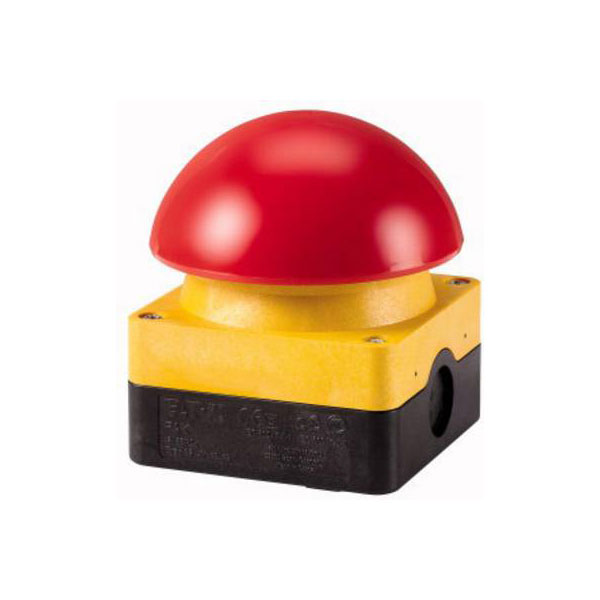

Image Representative of Range

Eaton 229748 FAK Foot Switch/Buzzer 230V 6A IP67 1x Latching

Eaton
Order Code:

11-7306

Brand: Eaton MPN: 229748 EAN-13: 4015082297480
Qty Unit Price (Ex VAT)
1+ £85.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
17 in stock, despatched in 4 working days

The Eaton 229748 foot switch/buzzer operates at 230 V AC with a 6 A rating, featuring a 1 x off/on latch mechanism. Its dimensions are 94 mm in diameter and 101 mm in height, with an IP67 rating for durability in harsh environments. This switch is typically used in industrial settings for emergency stop functions and control processes.
Type Foot switch/Buzzer
Switching Current 6A
(Ø) 94mm
Actuating Force 60N
Colour cap Red
Connection Screws
Degree of protection (IP) IP67/IP69K
Degree of protection (NEMA) 4X
Dim (Ø x H) 94 mm x 101 mm
Durability 0.1 x 10 6 cycles
Functions latch
Height 101mm
Hole Diameter 0mm
IP Rating IP67
Lighting type None
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 FAK-R/V/KC11/IY
Misc Attribute 2 Snap-in
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Spring-return FALSE
Switch position 1 x Off/On
Switch/button features Protruding
Switching Capacity 6 A/230V AC
Switching current (max.) 6A
Switching function latching TRUE
Switching Voltage 230V AC
Unlocking method Pull-release
