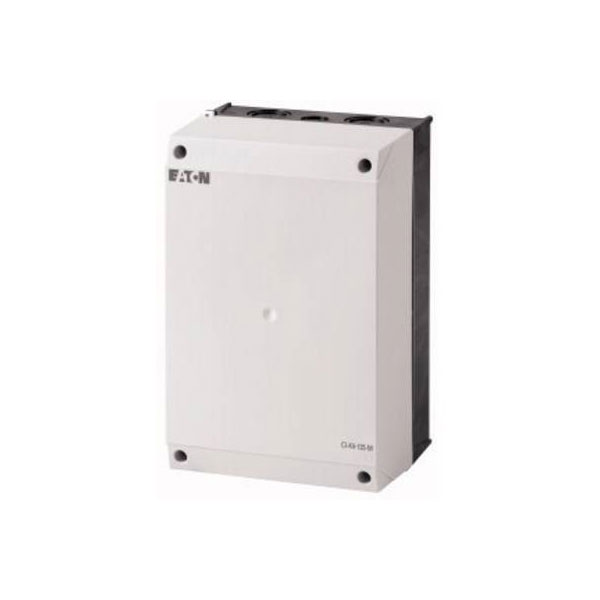

Eaton 206897 CI-K4-125-M Enclosure for mount plate grey-white 125x160x240mm

Eaton's CI-K4-125-M enclosure is designed for mounting plates and measures 125 x 160 x 240 mm. It features a grey-white (RAL 7035) body with black (RAL 9005) detailing, offering robust protection. This enclosure is typically used in industrial and electrical applications to house and protect equipment.

IP Rating	IP65
Type	Enclosure
Colour	Grey-white (RAL 7035), Black (RAL 9005)
Compatible with (details)	Emergency stop
Degree of protection (IP)	IP65
Degree of protection (NEMA)	Other
Dim	(L x W x H) 125 x 160 x 240 mm
Housing Material	Plastic
Length	125mm
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	The top and bottom 2 x M32/M25 1 x M20, rear wall 2 x M32/25 PG36
Misc Attribute 2	CI-K4-125-M
Model	Surface mounting
Suitable for emergency stop	TRUE
Switch/button features	for mounting plate
Width	160mm
With transparent cover	FALSE
