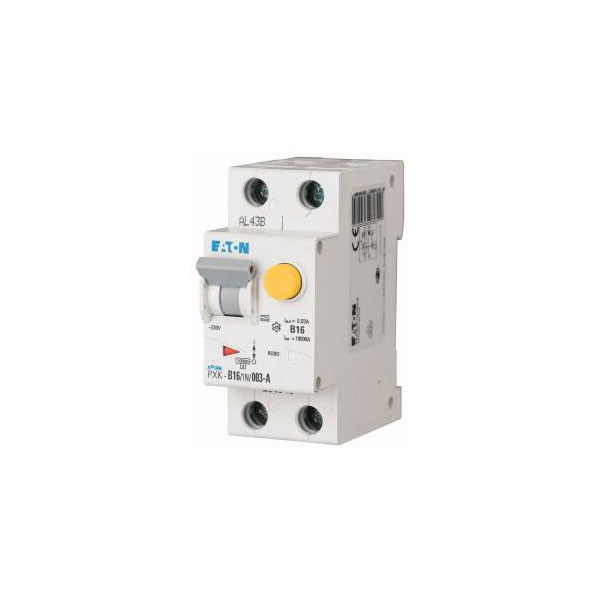

Eaton 193531 RCBO 16A 0.03A 415V AC compact residual current switch

Eaton
Order Code:

02-5869

Brand: Eaton MPN: 193531 EAN-13: 9010238026117
Qty Unit Price (Ex VAT)
1+ £149.40
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

Eaton manufactures the 193531 RCBO, a two-pin device with a 16 A current rating and 0.03 A residual current sensitivity suitable for 415 V AC systems. This combination of circuit breaker and residual current device provides overcurrent protection and earth fault detection. It is typically used in residential and commercial electrical installations to enhance safety.
Type RCBO
Ambient temperature during operating -25-40°C
Anti-nuisance tripping version TRUE
Built-in depth 75.5mm
Concurrently switching neutral conductor TRUE
Connectable conductor cross section multi-wired 1-25mm²
Connectable conductor cross section solid-core 1-25mm²
Current limiting class 3
Degree of protection (IP) IP20
Depth 75.5mm
Differential current rating 0.03A
Disconnection characteristic Undelayed
Flush-mounted installation FALSE
Frequency 50 Hz
Leakage current type F
Misc Attribute 1-pole + N
Nominal Current 16A
Nominal current - rounded value 16A
Nominal Voltage 415V AC
Number of Pins 2
Number of poles (total) 2
Number of protected poles 1
Overvoltage category 3
Pollution degree 2
Rated Current 16A
Rated fault current 0.03A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity according to EN 61009 10kA
Rated short-circuit breaking capacity according to IEC 60947-2 0kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 10kA
Rated Voltage 240V
Release characteristic C
Release characteristics C
Surge current capacity 3kA
Switch-off capacity 6kA
Voltage type AC
Width in number of modular spacings 2
With interlocking device FALSE
