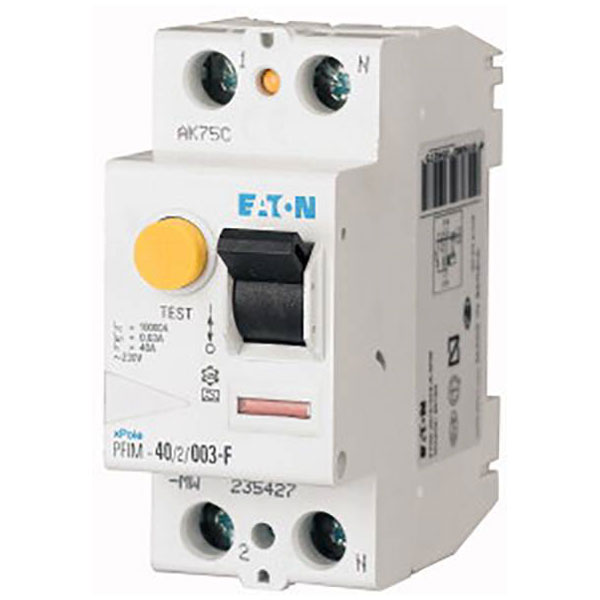

Eaton 187450 PFIM RCCB 40A 0.03A 230V AC A F for fault protection

Eaton
Order Code:

02-5863

Brand: Eaton MPN: 187450 EAN-13: 4015081825080
Qty Unit Price (Ex VAT)
1+ £115.08
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Eaton 187450 PFIM-40/2/003-G/F RCCB is a residual-current circuit breaker designed to provide protection against electrical faults in mixed frequency bands. It features a 40 A current rating and a 0.03 A sensitivity at 230 V, ensuring reliable safety in residential or commercial electrical installations. Typical applications include safeguarding lighting circuits and small power circuits, preventing electric shocks and fire risks.
Type RCCB
Additional equipment possible TRUE
Ambient temperature during operating -25-60°C
Built-in depth 70.5mm
Connectable conductor cross section multi-wired 1.5-16mm²
Connectable conductor cross section solid-core 1.5-35mm²
Degree of protection (IP) IP20
Depth 70.50mm
Differential current rating 0.03A
Dim (L x W) 80 mm x 35 mm
Explosion-proof FALSE
Factory colour White
Frequency 50 Hz
Leakage current type Other
Length 80mm
Model for mixed frequency bands
Mounting Method DIN rail
Nominal Current 40A
Nominal current - rounded value 40A
Nominal Voltage 230V
Number of Pins 2
Number of Poles 2
Pollution degree 2
RAL-number (similar) 7035
Rated Current 40A
Rated fault current 0.03A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated Voltage 230V
Release characteristics G/F
Selective protection FALSE
Short-circuit breaking capacity (Icw) 10kA
Short-time delayed tripping TRUE
Surge current capacity 3kA
Voltage type AC
Width 35mm
Width in number of modular spacings 2
With interlocking device TRUE
