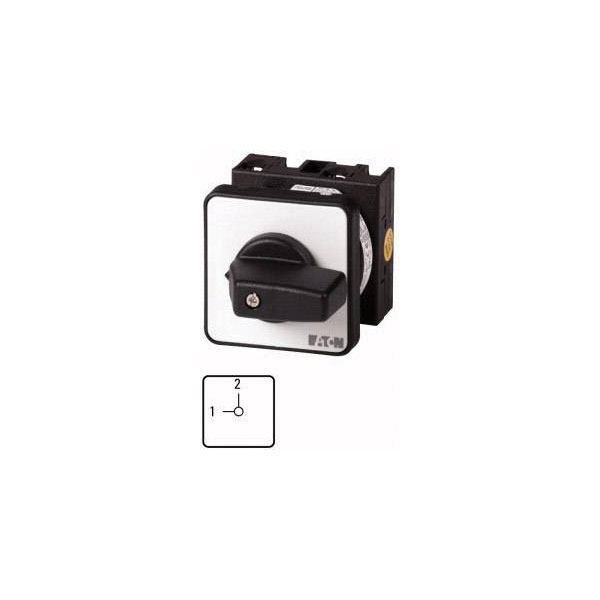

Eaton 026991 T0-1 Changeover switch 1pc

The Eaton changeover switch is designed for reliable switching between power sources. This durable switch is suitable for industrial applications where consistent performance is essential. Its compact design allows for easy installation in electrical systems.

Type	Changeover switch
Complete device in housing	FALSE
Degree of protection (IP), front side	IP30
Degree of protection (NEMA), front side	2
Device construction	Built-in device
Front shield size	48x48 mm
IP rating	IP30
Max. rated operation voltage Ue AC	690V
Misc Attribute 1	T0-1-15431/IVS
Misc Attribute 2	Switch
Number of Poles	1
Number of switch positions	3
Rated permanent current Iu	20A
Suitable for distribution board installation	TRUE
Suitable for floor mounting	TRUE
Suitable for front mounting	FALSE
Suitable for intermediate mounting	FALSE
Switching current (max.)	20
Switching voltage	690V
Type of control element	Toggle
Type of switch	Reverser
Width in number of modular spacings	4
With retraction in 0-position	FALSE
With zero (off) position	TRUE
